32 AGA Ellesmere Standard Gas Stove
3.5.7 Vertical Roof Vent Termination C
31
Flue sizing: Ø100/150 Flue Connector on Appliance is for Poujoulat Duo Gas only
Minimum Vertical Flue Height: 0.5m
Maximum Vertical Flue Height: 15m
Flue calculations when using elbows (0-90° permissible), total flue length maximum = 15m and each
bend will equate to ½m, Vertical rise (V) must be at least twice the Horizontal run (R), i.e. V=2H (or
H/V≤½).

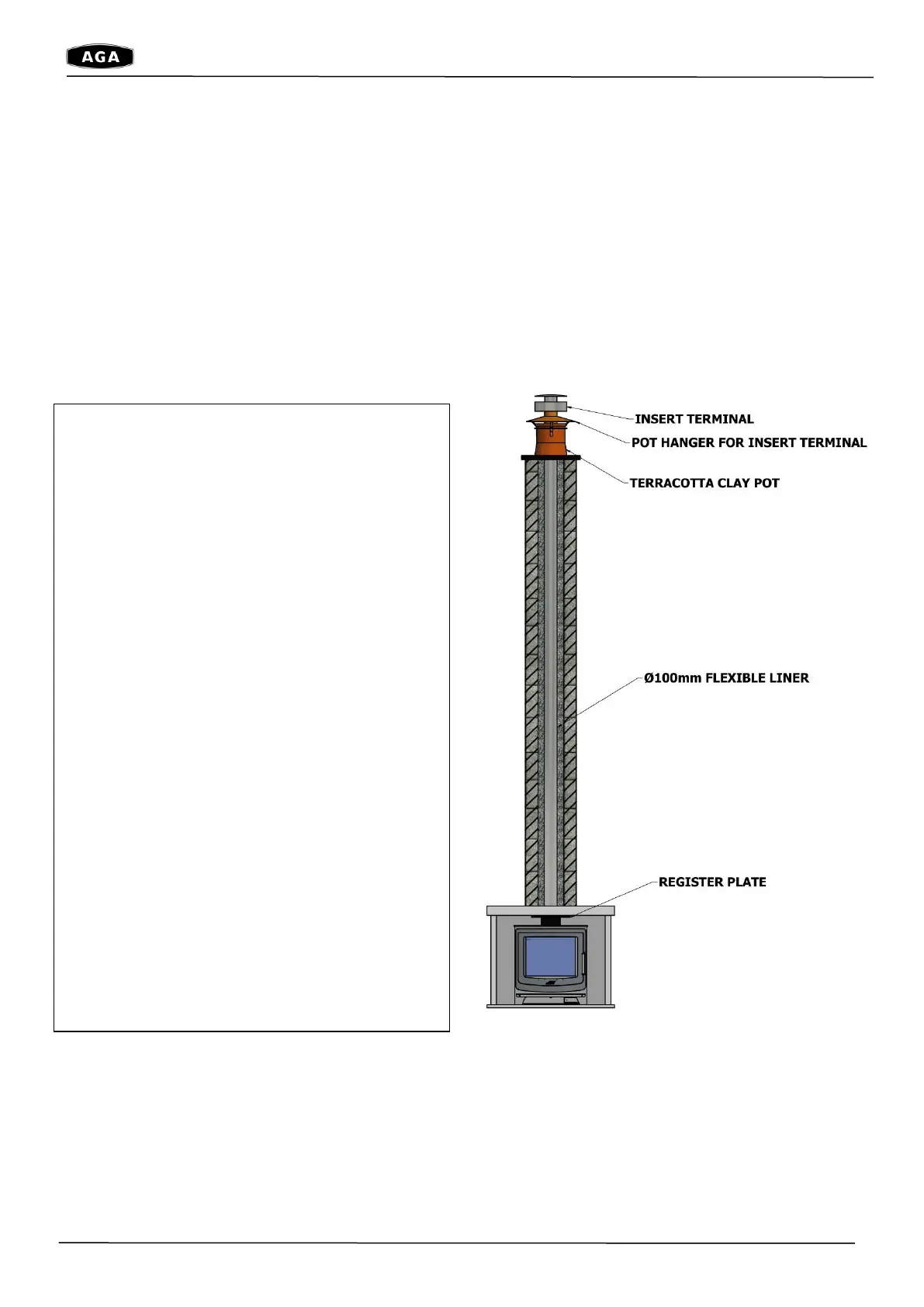

Flue Kit 4 – Renovation Kit to Fit into an Existing Chimney Configuration
This kit will allow you to install your Ellesmere Balanced gas flue stove into an existing fireplace and use
your existing chimney – please note your chimney must be in a good condition for this system to be
fitted and fully swept and cleaned before installation, the minimum internal dimension of your chimney
must be at least 150mm diameter from the top to the bottom
Diagram for illustration purposes only - Not to Scale
To Order Flue kits please email Spares@agastoves.org.uk or ring Poujoulat on 01483 461700
Flue Kit 4 – Consists of the following:
Insert Vertical Terminal (Rain Cap)
Pot Hanger for Insert Vertical Terminal to
fit onto
Register Plate & Adjustable Concentric
Flue Pipe, which is adjustable in length
from 390mm to 640mm
AGA Part Numbers:
AE4M 531088 - Matt Black Finish (RAL 9030)
Pot Hanger comes painted orange to match the
clay chimney pot on your roof
PLEASE NOTE –
THIS KIT DOES NOT INCLUDE THE 100MM
DIAMETER STAINLESS STEEL (GRADE 316
OR HIGHER) FLEXIBLE LINER. YOU CAN
PURCHASE THIS SEPARATELY TO THE
REQUIRED LENGTH OF YOUR CHIMNEY
If the 100mm flexible liner is not supplied from
AGA/Poujoulat please make sure the one your
install forms an air tight seal on the Register
Plate
