19
SERVICING WARNING
Disconnect from electricity before servicing. Check appliance is safe when you have finished.

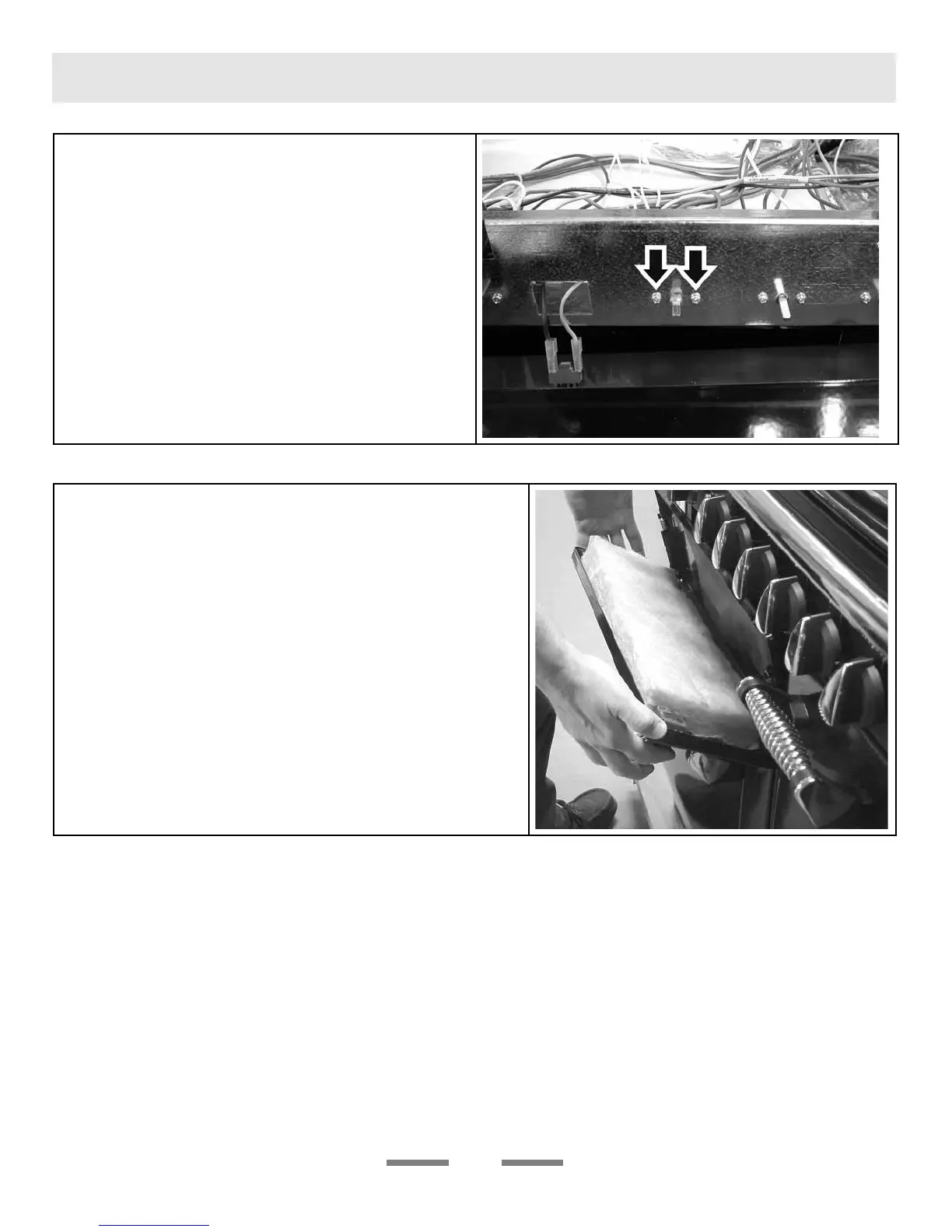

13. To Change Cooktop or Broiler Controller
Lift up the ceramic hob top (see 4). Remove control
panel (see 8). Disconnect wiring from controller – make
a note of the wire colors and terminal connections.
Refer to the wiring schematic.
Remove 2 screws holding controller to mounting panel.
Fit new controller and reassemble in reverse order.
Check that the wiring is correct as shown in the wiring
schematic.
Check for correct operation.
14. To Remove Broiler Outer Door Panel
Open left hand oven door and remove 2 screws from bottom
edge of broiler door. Open broiler door, support broiler door
outer panel and remove two screws from top inner face of
broiler door. There is a pad of fi bre insulation inside the door.
Reassemble in reverse order making sure that the pad of
insulation is in place.
