Additional Labeling of the DR Detector battery charger

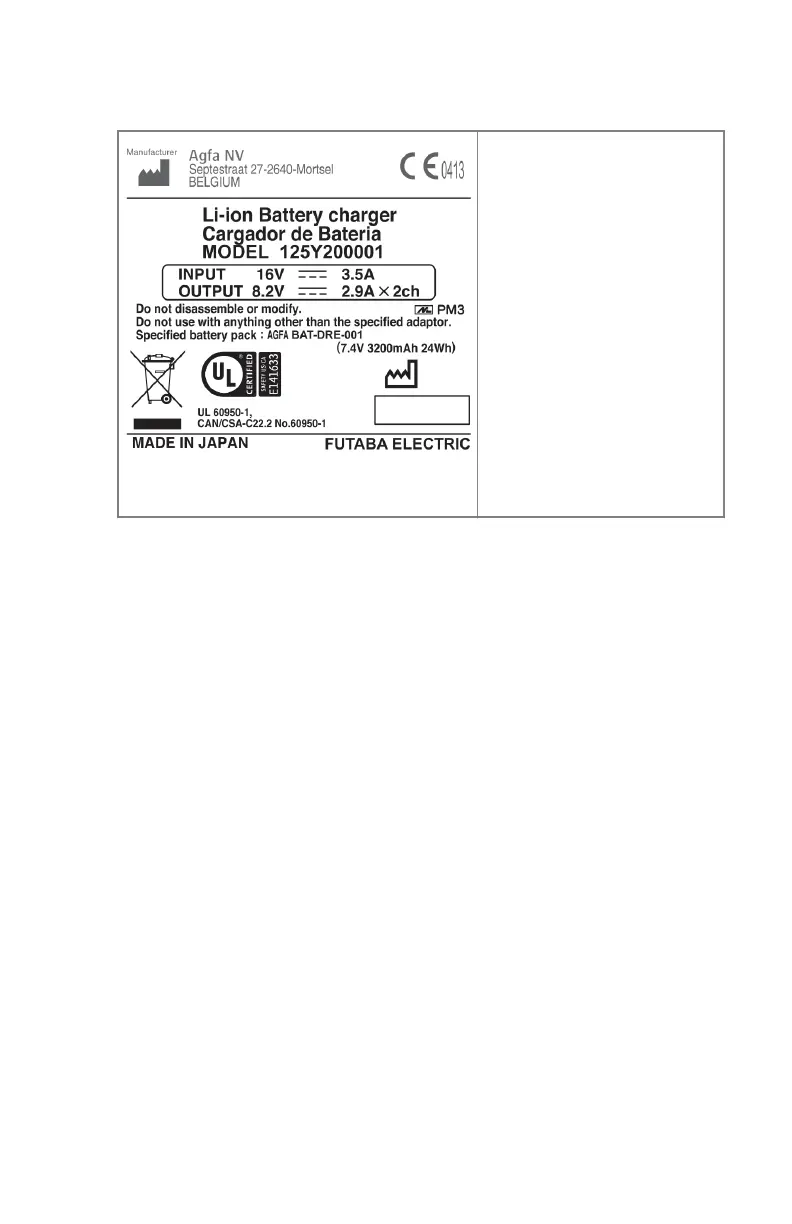

Figure 14: Example of type label

Type label on the bottom side

of the battery charger.
