Chapter 2 — Installing the scanner 27

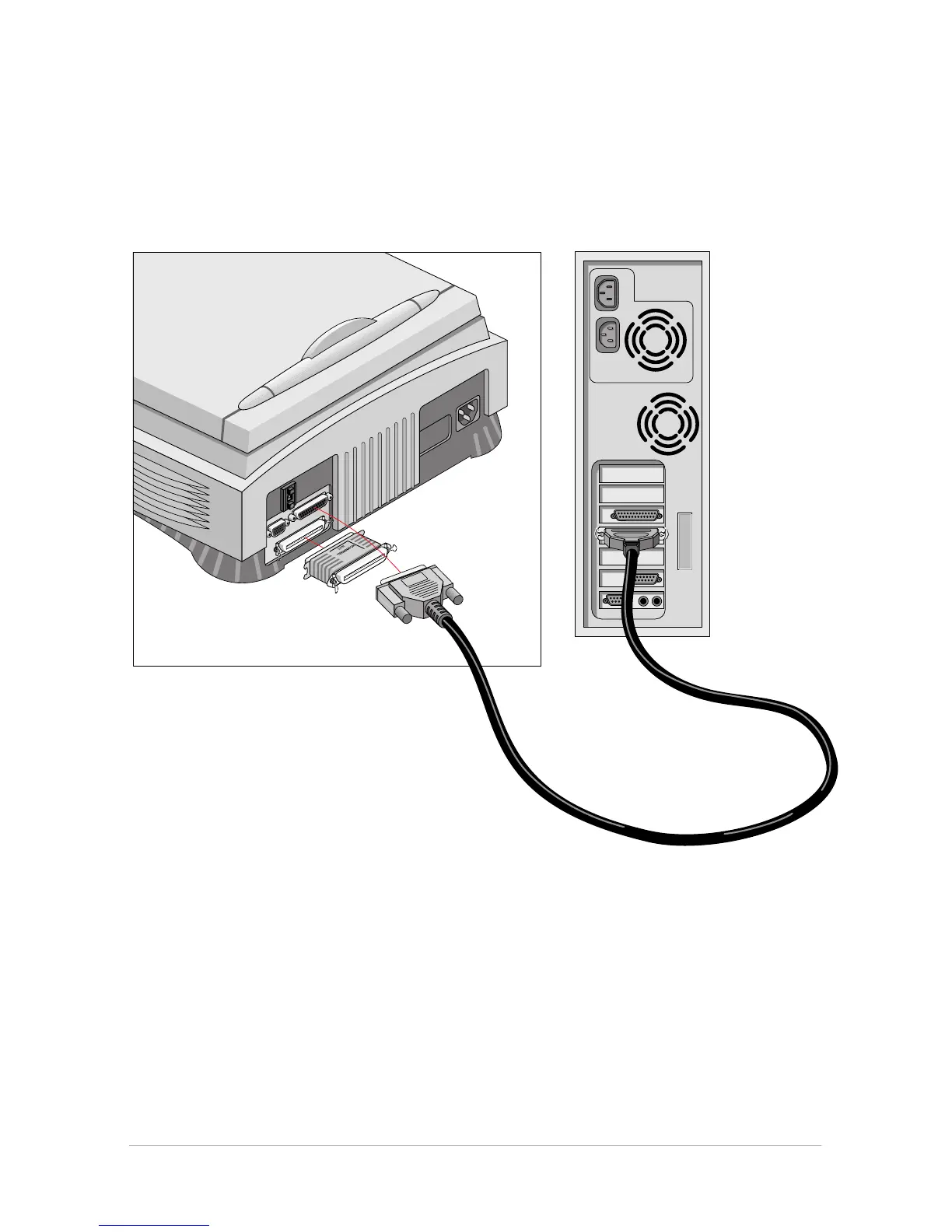

■ If your PC has a 50-pin connector and your SnapScan is the only SCSI device to be connected
to your PC:
1. Connect the larger 50-pin end of the SCSI cable to the connector at the rear of your PC.
Use the SCSI cable supplied with the scanner.
2. Place the terminator at the 50-pin connector of the scanner and snap the diamond shaped wire
clips into the clip brackets to secure the connection.
3. Connect the smaller 25-pin end of the SCSI cable to the free connector of the scanner.
