Chapter 2 — Installing the scanner 28
■ If your PC has a 50-pin connector and your SnapScan will be connected to your PC together
with other SCSI devices:

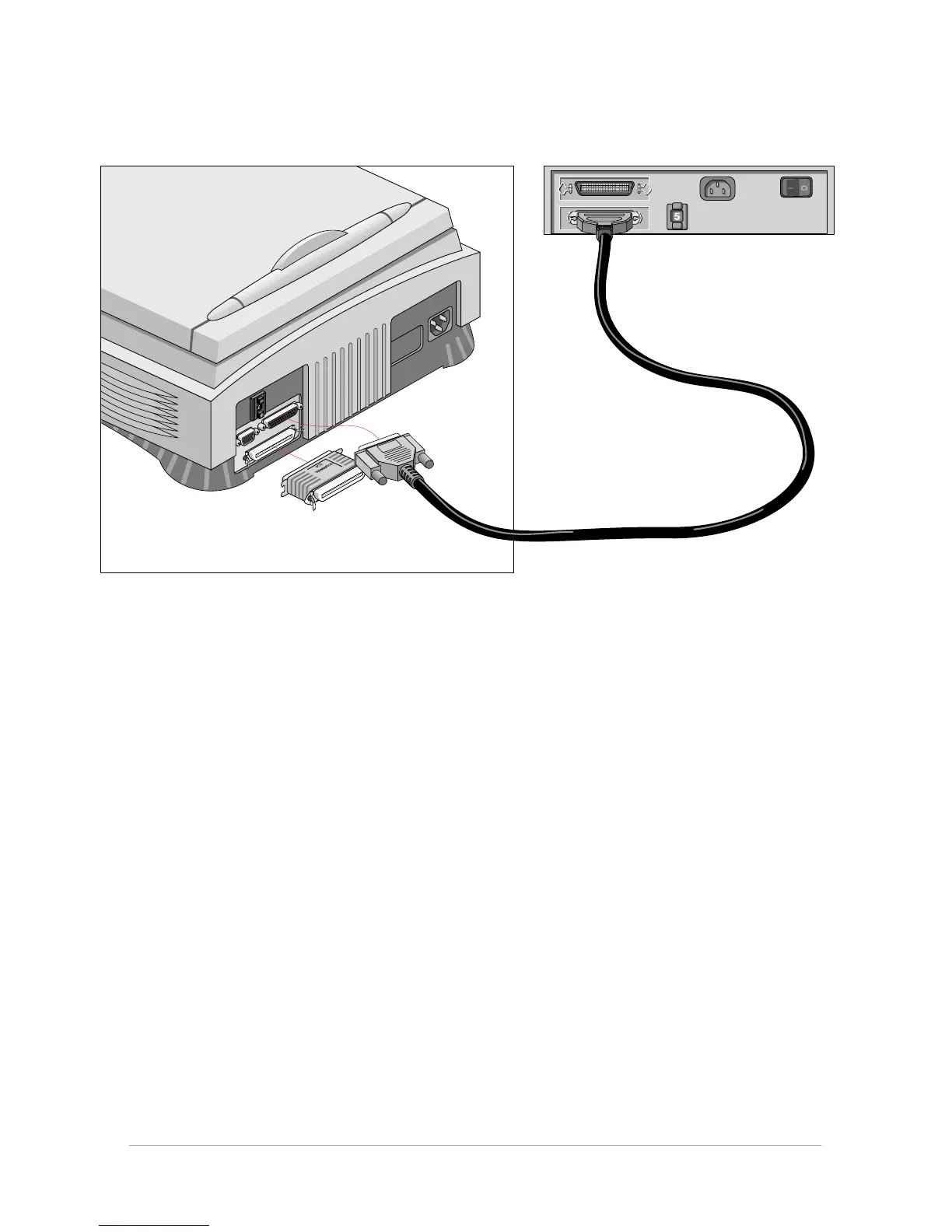

If you install the scanner at the end of your SCSI chain:
1. Connect the 50-pin end of the SCSI cable to the connector at the rear of your device.
2. Place the terminator on the 50-pin connector of the scanner. Snap the diamond shaped wire
clips into the clip brackets to secure the connection.
3. Connect the 25-pin end of the cable to the scanner.
