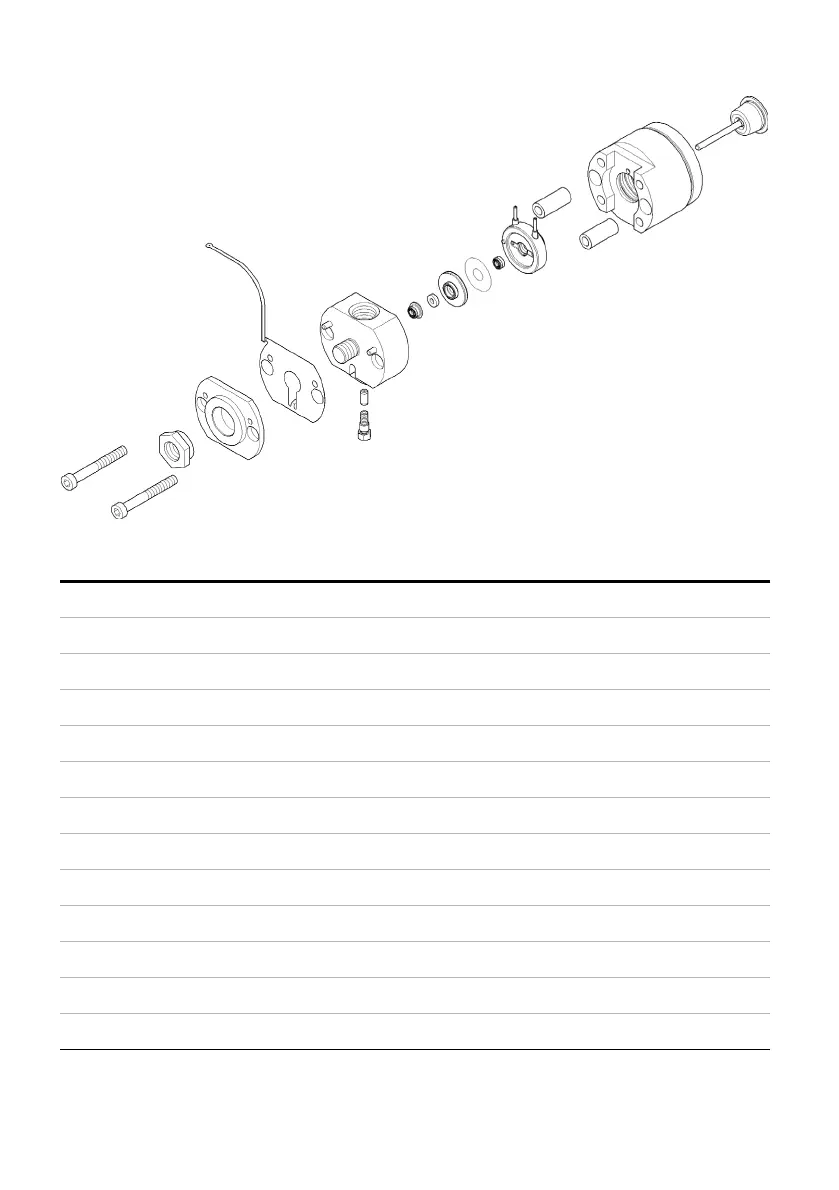

Agilent 1290 Infinity Pump Service Kit 9
8
1 Pump head screw
2 Pump head front plate
3 Heat exchanger (primary pump head only)
4 Pump chamber housing
5 Spacer fitting
6 Pump head hex screw
7Pump seal
8 Backup ring for seal holder
9 Seal holder
10 Gasket (seal wash)
11 Wash Seal PE (seal wash)
12 Support ring (seal wash)
13 Piston housing
1
11
2
3
6
5
4
7
8
9
10
12
13
