Agilent Technologies 16900 Series Service Guide

128
Chapter 8: Theory of Operation
The information in this chapter is to help you understand how the logic analyzer
operates. This information is not intended for component-level repair.
Block-Level Theory

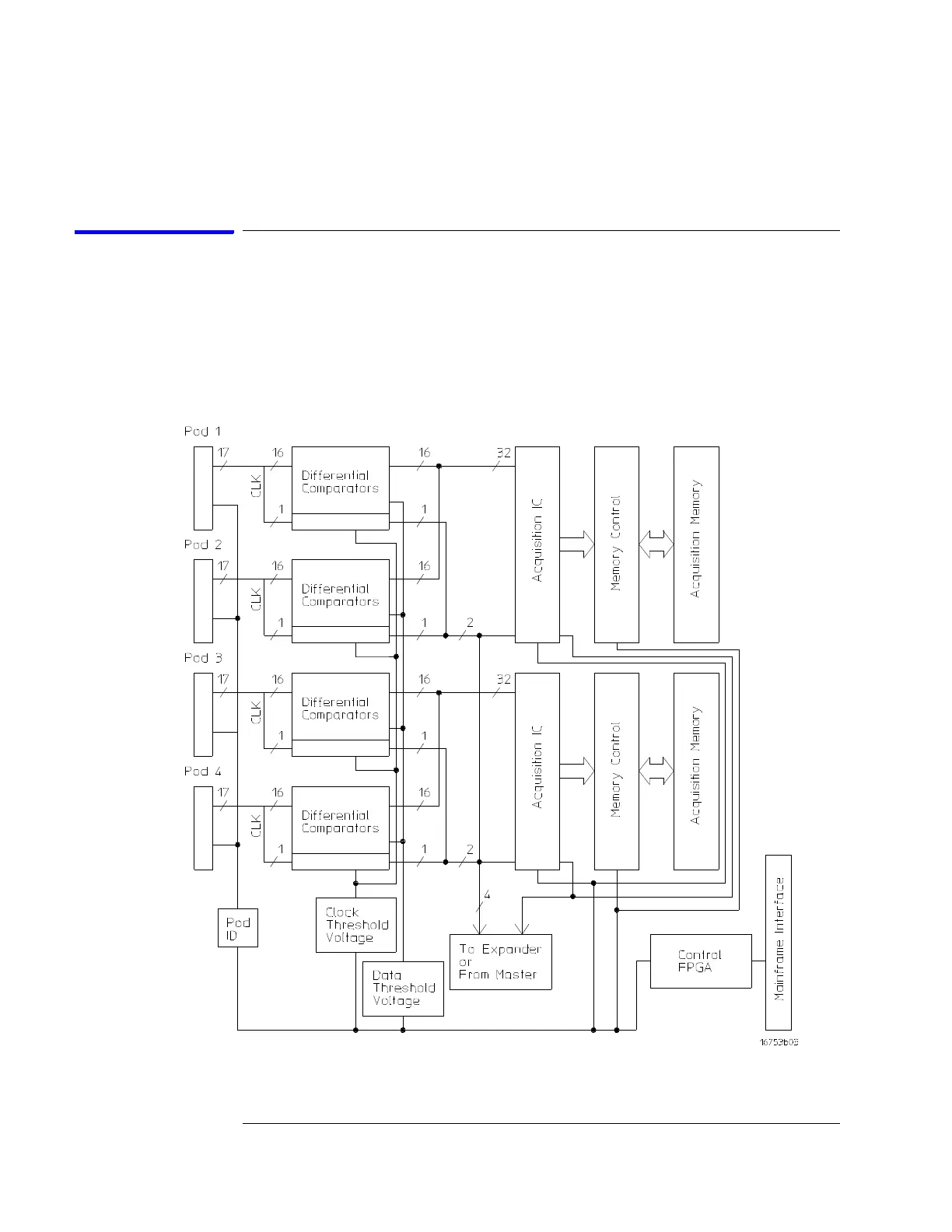

The block diagram of the 16753/54/55/56A or 16950A logic analyzer is shown
below.
The 16753/54/55/56A or 16950A logic analyzer
