52
Chapter 3: Testing Logic Analyzer Performance
Test Pod 2 in 300 Mb/s Mode
12 Select the OK button to close the “Threshold Settings: Clock for Pod 2”
window.
13 Select the OK button to close the “Threshold Settings - Clocks” window.
14 Select the Sampling tab (at the top of the window). In the State Options
area, set clock Clk1 to Don’t Care.

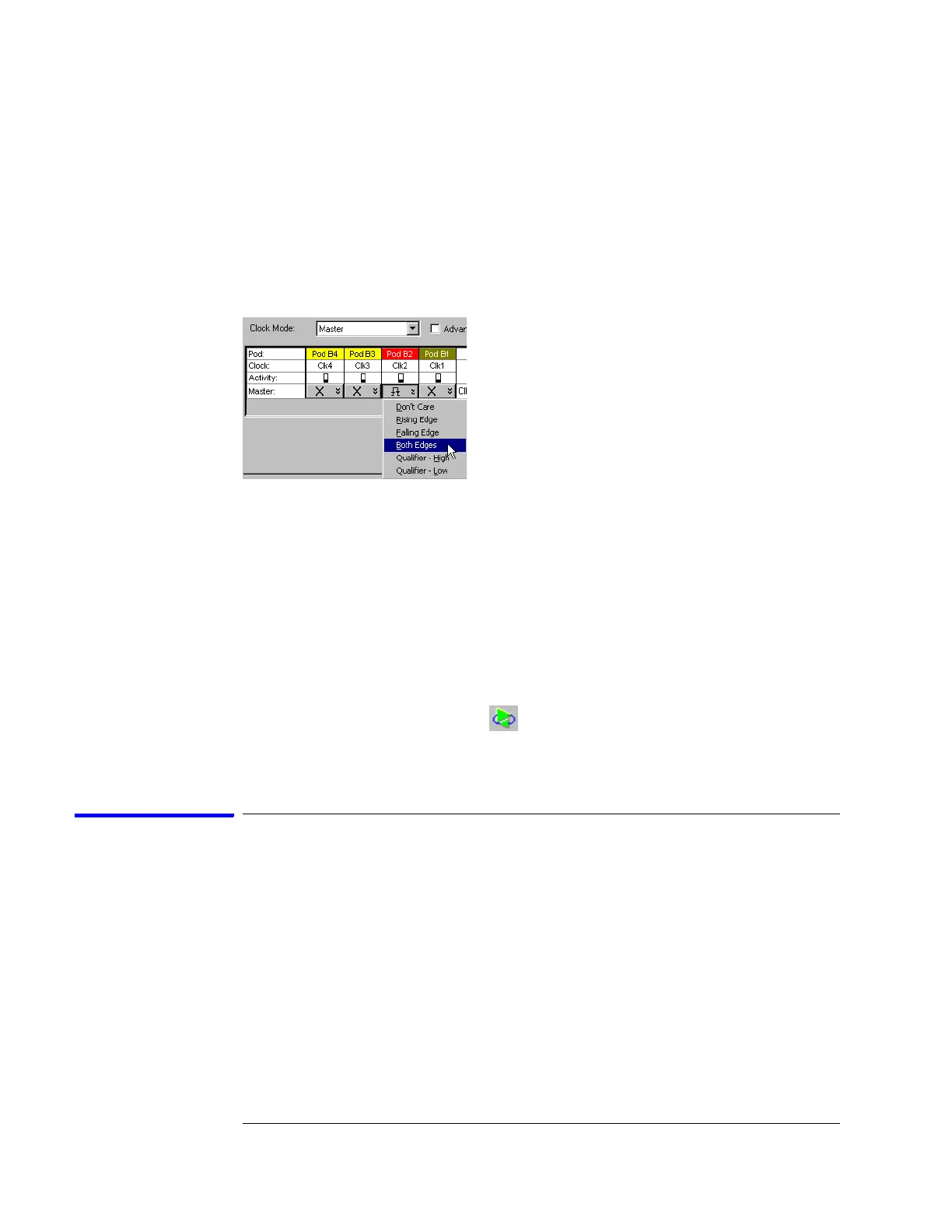

15 Set Clk2 to Both Edges.
16 Adjust the sampling positions using Eye Finder. Be sure to expand “My
Bus 1” and use the recommended starting position noted on page 44.
Realign any stray channels if necessary. See page 45.
17 Determine pass or fail (1 of 2 tests). See page 46.
18 Select OK to close the “Analyzer Setup” window.
19 Switch to the Listing window by selecting the Listing tab at the bottom of
the main logic analyzer window.
20 Select the Run Repetitive icon .
21 Determine pass or fail (2 of 2 tests). See page 48.
Test the complement of the bits (Pod 2, 300 Mb/s mode)
1 Test the complement of the bits. See page 49.
