69
Chapter 3: Testing Logic Analyzer Performance
Testing the module using a 16700-series Mainframe
place the blue bars in the narrow eye.

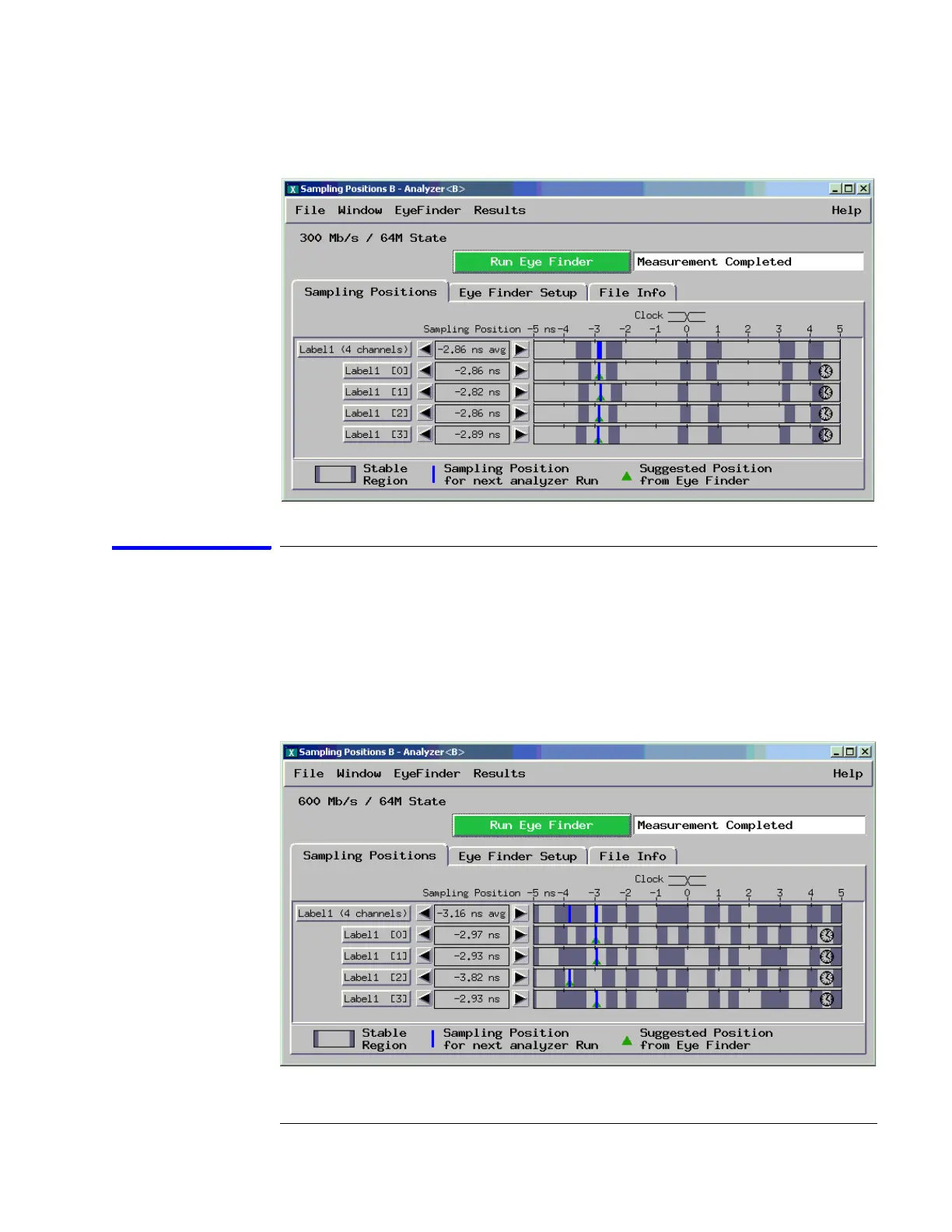

To re-align a stray channel
If the blue bar for a particular bit does not appear in its eye near the
recommended starting position, then do the following steps to realign the
sampling position of the stray channel. In the following example, the
sampling position of one channel (Label1 [2]) must be realigned with the
sampling position of the other channels. (The following example shows the
analyzer in 600 Mb/s mode.)
