Agilent Technologies 4339B User Guide
4
of 1
of 1 rating
46 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
4339B
16008B
16339A
16117B

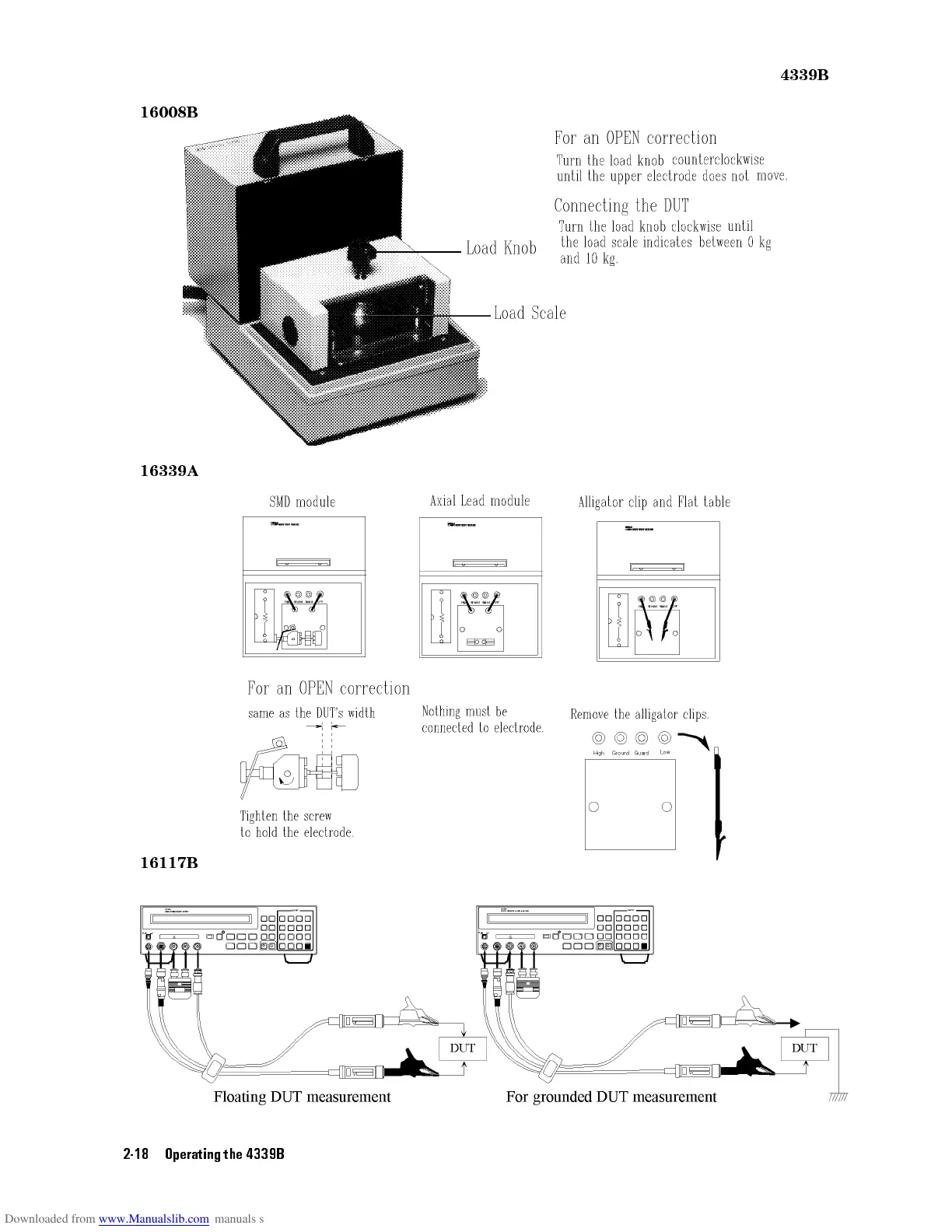

2-18
Operating
the
4
339B
33
35
Table of Contents
Table of Contents
11
Preparation for Use
15
In this Chapter
15
Power Requirements
15
To Set Power LINE Voltage
15
To Set Power LINE Frequency
16
Operating the 4339B
17
In this Chapter
17
To Reset 4339B to Its Default Settings
18
To Connect Test Fixture
18
16008B Resistivity Cell
18
16117B Low Noise Test Lead
19
16339A Component Test Fixture
19
To Perform Calibration|Canceling Internal Measurement Errors
20
To Set Test Voltage
20
To Set Current Limit
20
To Perform OPEN Correction |Canceling the Stray Admittance in Parallel with the DUT
21
If \Out of Limit" Is Displayed
21
To Connect DUT
22
To Select Measurement Parameter
22
Setting the Parameters for Resistivity Measurement
23
Setting Thickness of the DUT
23
Setting the Electrode Size
23
To Select Measurement Range
24
Auto Range Mode|Automatically Selecting the Optimum Measurement Range
24
Hold Range Mode|Holding the Measurement Range of Your Choice
24
To Select Measurement Time Mode
24
To Set Averaging Rate|Stabilizing the Measurement Result
25
To Select Trigger Mode
25
To Set Trigger Delay Time
25
To Use Deviation Measurement Function
26
Setting the Deviation Reference Values
26
Selecting the Deviation Mode
26
To Use Comparator Function
27
Setting the Limit Values
27
Sorting
27
To Select Display Mode
28
To Select Beeper Mode
29
Dut
29
To Print Measurement Data
30
Setting the Printer
30
Printing
30
Disabling Printing
30
To Use Measurement Sequence Function |Controlling Charge-Measurement in a Sequence
31
Selecting the Measurement Sequence Mode
31
Setting the Measurement Sequence
31
Starting Measurement Sequence
32
Aborting Measurement Sequence
32
To Apply Test Voltage
32
To Trigger a Measurement
32
To Turn off Voltage Output
32
Reference
33
Default Settings
33
Accessories Available
33
Test Fixtures and Test Leads
33
16064B LED Display/Trigger Box
35
Other Topics
36
If You Have a Problem
36
Measurement Examples
37
In this Chapter
37
Measuring Insulation Resistance of Capacitor
38
Measurement Setup
38
Measurement Procedure
38
For more Information
41
Measuring Resistivity of Insulation Material
42
Measurement Setup
42
Measurement Procedure
42
For more Information
45
