Step 5. Install the spray chamber
Agilent 6400 Series Triple Quad LC/MS System Installation Guide 27
Step 5. Install the spray chamber
Agilent Jet Stream ESI Source (6460/6470/6490/6495 only)
Before you begin, check that you have these parts:
• Agilent Jet Stream (AJS) ESI source
• ESI-L Low Concentration Tuning Mix (p/n G1969-85000)
1 Remove the top cover by loosening the T10 lock screw and lifting off the
instrument chassis.
2 Remove the AJS ESI source from the packaging inside the instrument
chassis next to the e-Module. See Figure 20.
For the 6470/6490/6495, the AJS ESI source is shipped outside of the
instrument chassis.

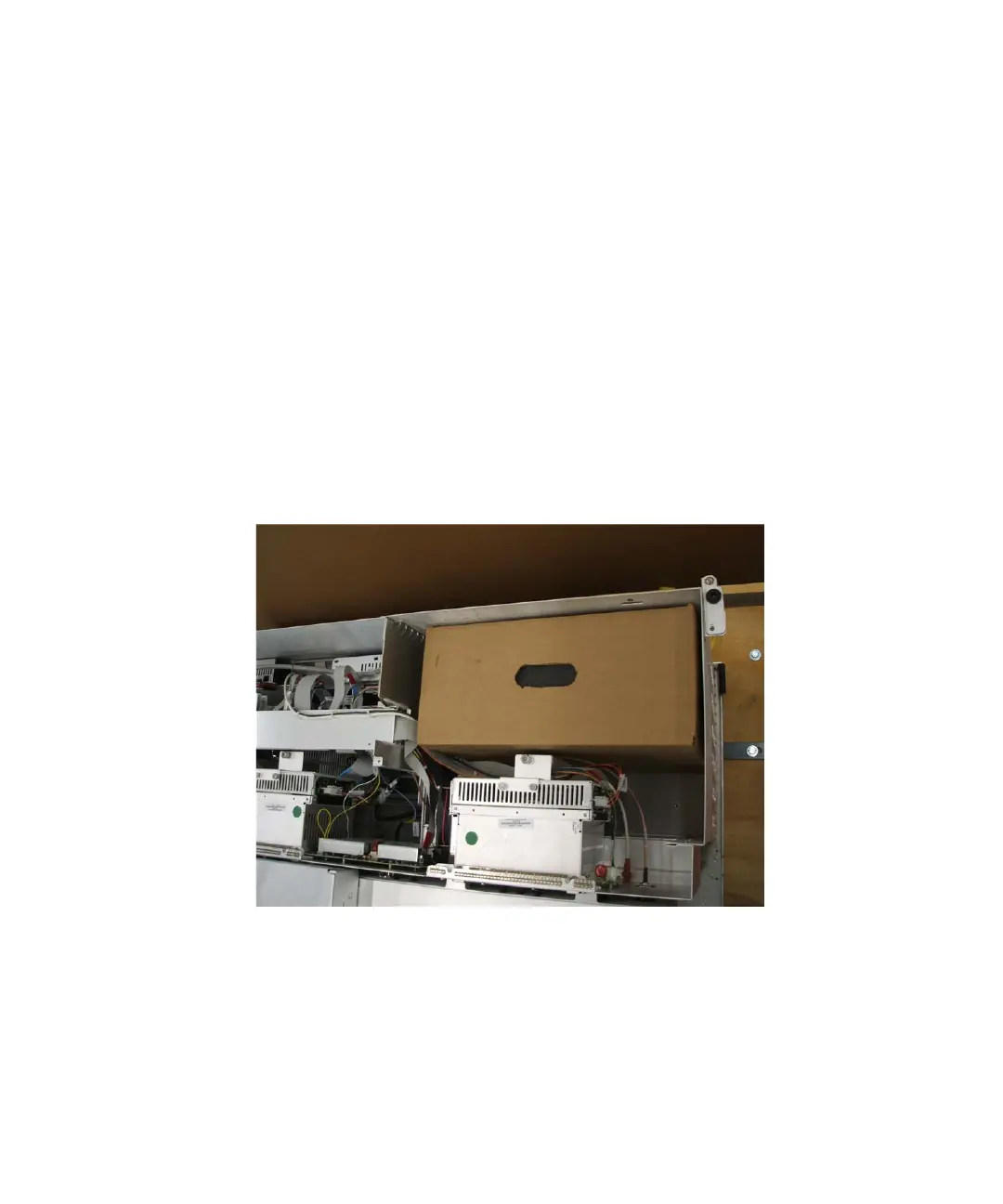

Figure 20 Packaging for AJS ESI source for 6460. For 6470/6490/6495, the AJS ESI is
shipped outside of the instrument chassis.
3 Remove the foil that covers the spray chamber mount, and remove the
shipping cover from the Electrospray spray chamber.
