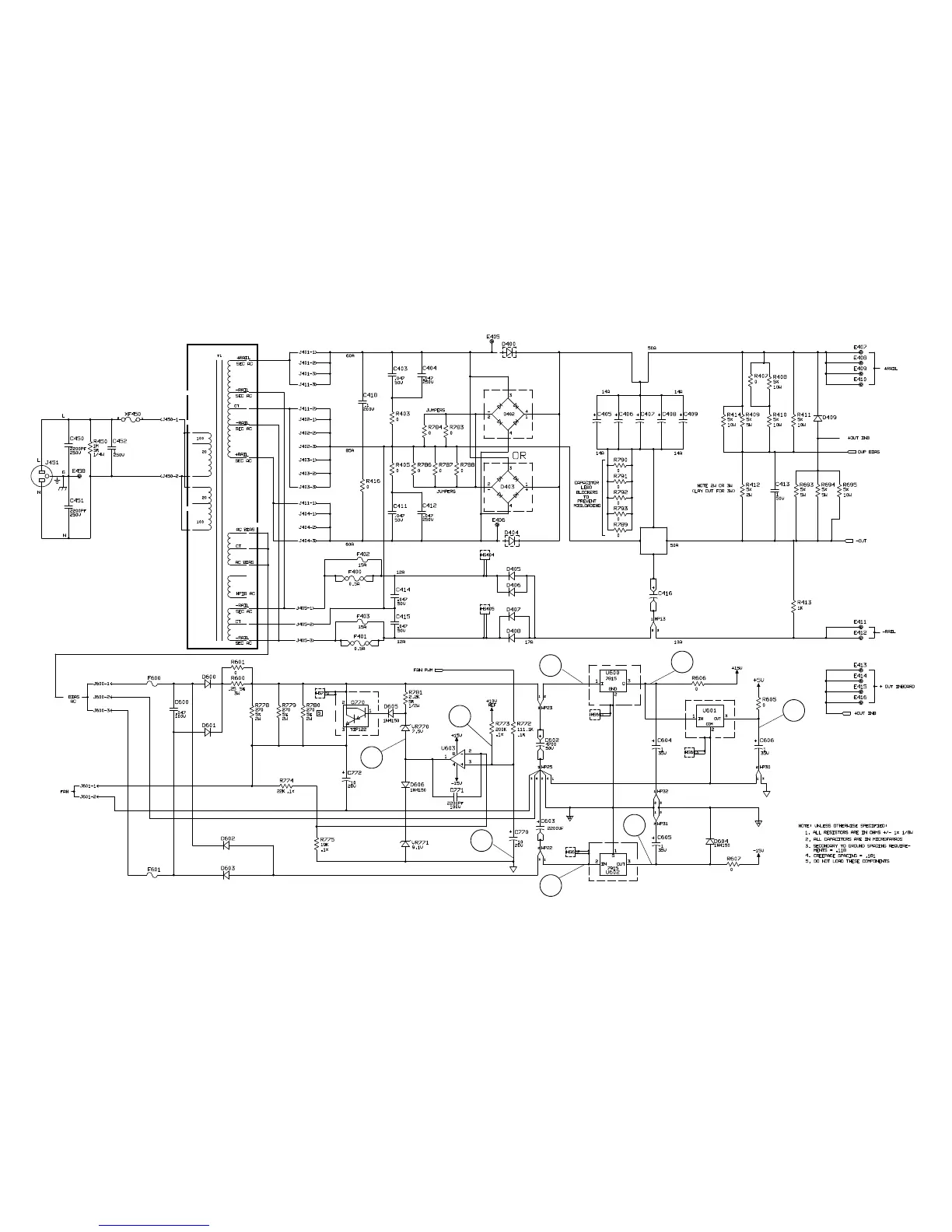

Figure 6-5. A1 Main Board AC Input, Power Rectifier, Bias, and Fan Speed Control Circuits
Schematic Diagram for 655xA & 665xA Models Only (sheet 1A)
