Maintaining the Instrument
Changing the Sampling Needle
3

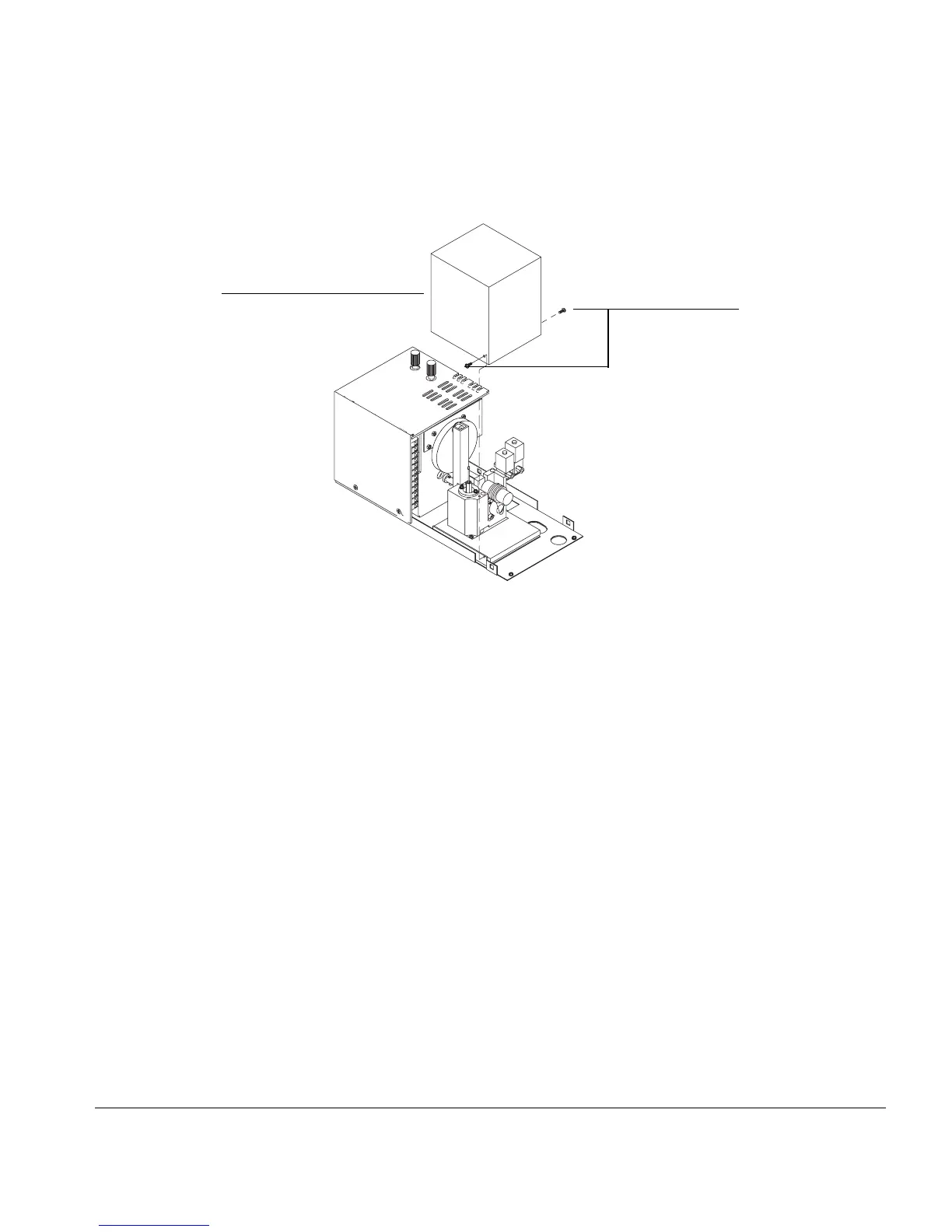

Figure 17. Removing the manifold cover and insulation
3. The sampling needle is located inside the square aluminum block. It is
connected to the sampling valve through a 1/16–inch nickel tube and
hexagonal union.
4. Support the hexagonal union with a 7-mm wrench and remove the nut with
another 7-mm wrench. Then, loosen and remove the hexagonal union. Lift
out the needle.
Loosen
Manifold cover
and insulation
(Sampler cover
removed for clarity)
