40 7820A GC Installation Manual

7820A GC Installation Guide

Cable Diagrams

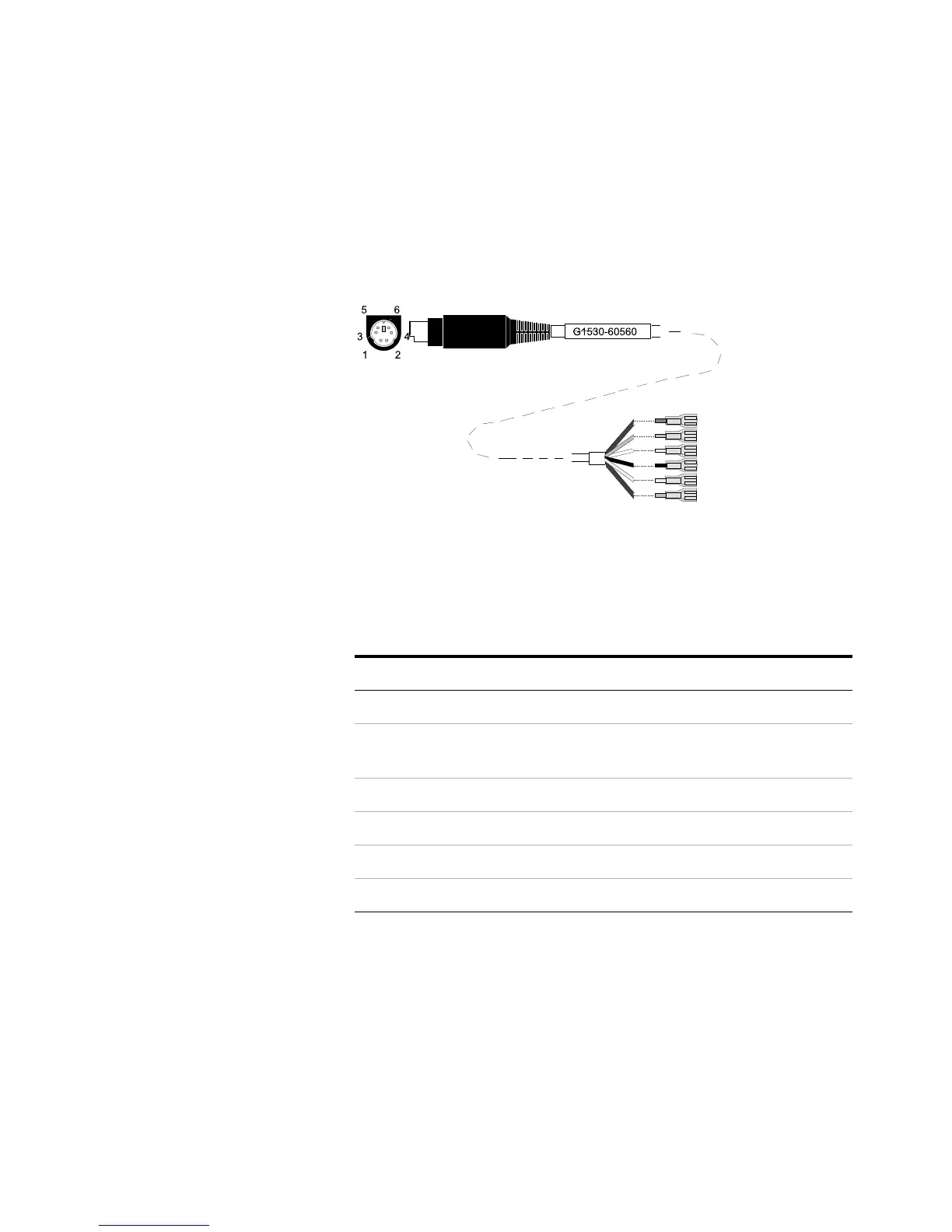

Analog cable, general use

The pin assignments for the general use analog out cable

are listed in Table 3.

Table 3 Analog cable, general use, output connections

Connector 1 Connector 2, wire color Signal

1 Brown or violet Not used

2 White 0 to 1 V, 0 to 10

V (–)

3 Red Not used

4 Black 1 V (+)

6 Blue 10 V (+)

Shell Orange Ground

Connector 1

Connector 2
