Agilent Technologies B1500A Training Manual

Module 9
Modifying Application Test Definitions
9-29
To Add Data Display
Analysis: Display Data Setup
Data display
Measurement,
data display, and
data save
The test setup performs measurement, displays the test result, and stores the test result data to the test
record.

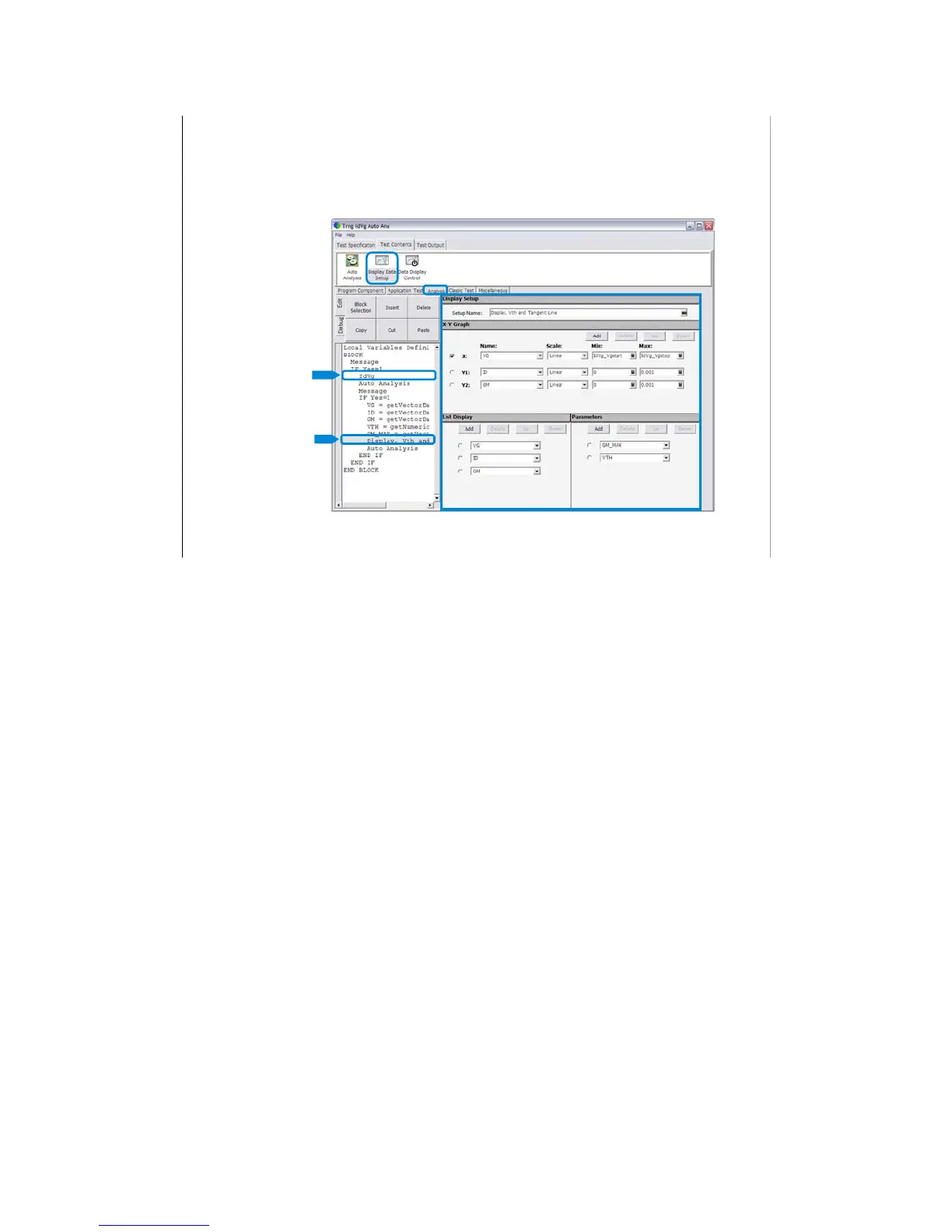

In addition to the default test result display, you can make additional data display by using the
Display Data Setup statement. The statement provides the user interface as same as the Display
Setup of the Classic Test or the Test Output of the test definition. The above example displays the
ID-VG/GM-VG curves, GM_MAX and VTH values, and tangent line by using the extra Data
Display and Auto Analysis function. See next slide.
Note:
This additional display data cannot be saved to the data record. However only the last display data
can be saved if the Test Output has not been set.
