Module 7
Measurement Functions
7-13
This box pops up
only if VPULSE
or IPULSE is set
on Channel Setup.
Range and
ADC/Integ
are disabled
Maximum measurement value
VPULSE
Measurement Setup

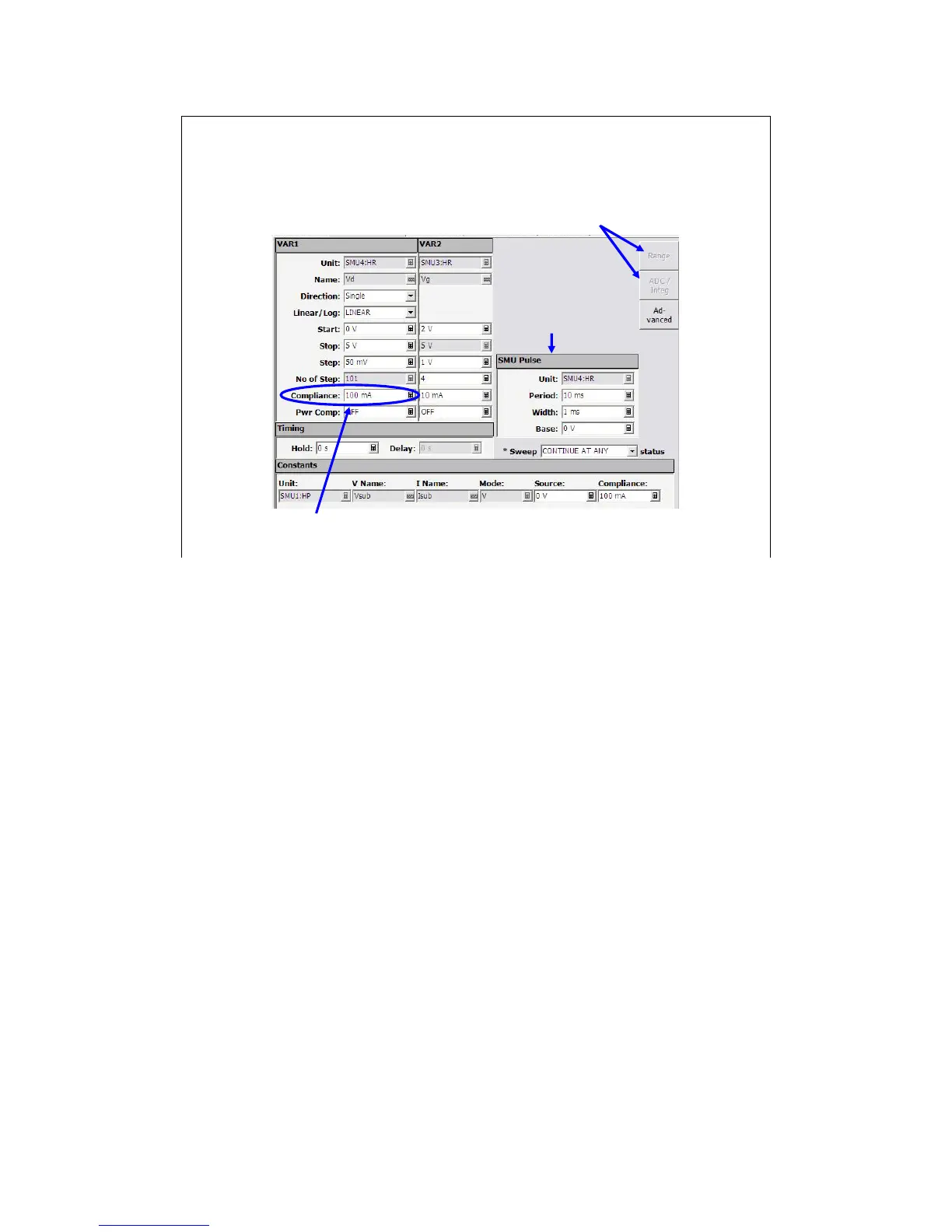

Default pulse conditions for the Measurement Setup are shown here. The base is 0, and the pulse
duty cycle is 10 %. These settings are OK for this class exercise. Click the Single button to start a
pulsed sweep measurement.
Range and ADC/Integ buttons are disabled for pulsed measurement. The measurement range is
always the compliance range. And the integration time cannot be changed.
For example, if you change the Compliance value to 30 mA, the data beyond 30 mA cannot be
measured.
