Module 9
Modifying Application Test Definitions
9-34
To Use Test Setup Internal Variables
Setup example
Assign to external variables…
This example makes the mapping table between the test setup internal parameters and the analysis
parameters.
•Define VTH, GM_MAX, VG, ID, and GM as the analysis parameters.
•Set these analysis parameters to the display parameters.

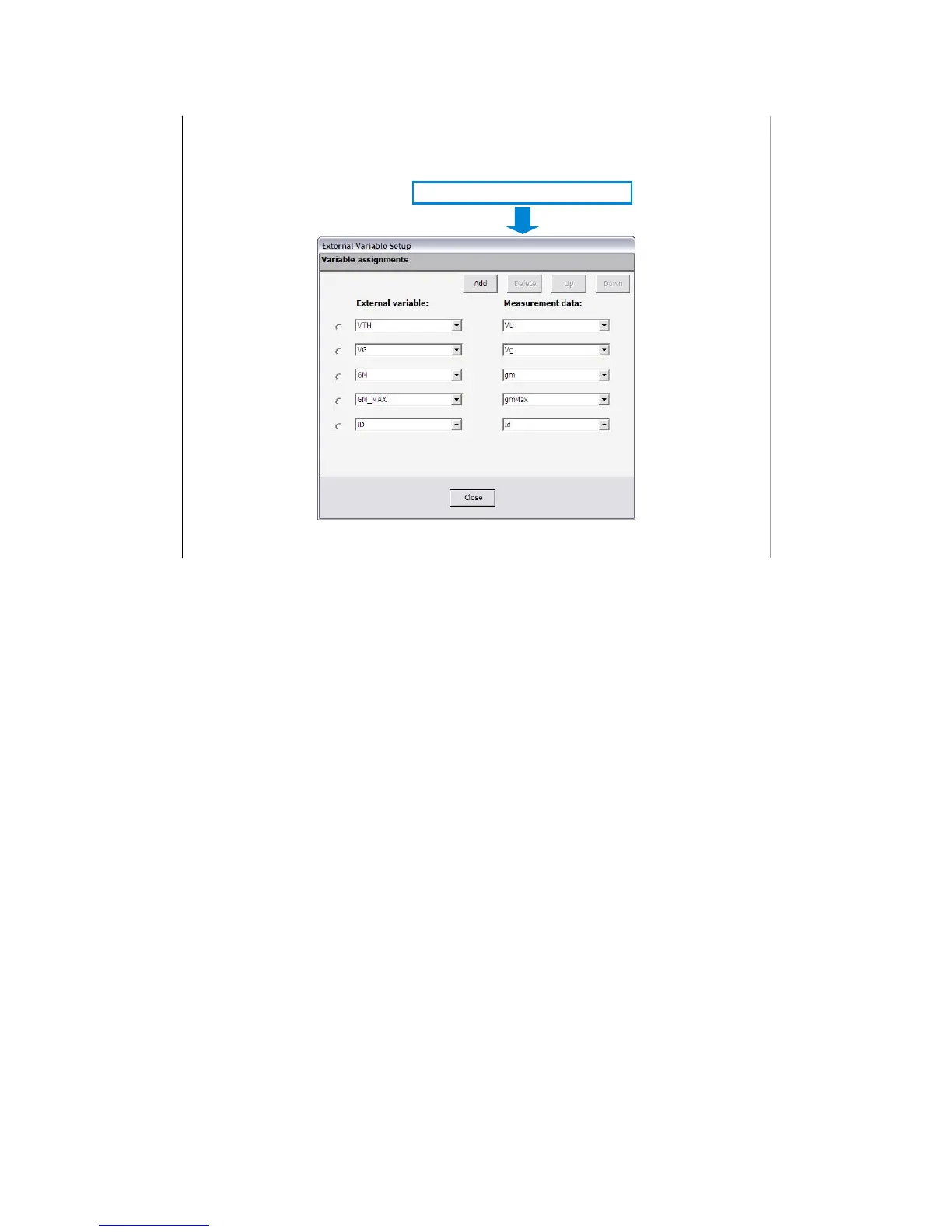

•Open the External Variable Setup dialog box.
•Assign VTH to the internal parameter Vth.
•Assign VG to the internal parameter Vg.
•Assign GM to the internal parameter gm.
•Assign GM_MAX to the internal parameter gmMax.
•Assign ID to the internal parameter Id.
For the example definition, open the Trng idvd idvg2 definition stored in the \data folder on the
Manual CD-ROM. The Manual CD-ROM stores the example test setup and definition data used in
this manual.
