Agilent Technologies B1500A - Page 84

Module 8
Capacitance Measurement
8-14
B1500A Rear View
SMU4
SMU3
SMU2
SMU1
CMU
GNDU
CMUL or SMU4 Force
CMUH or SMU5 Force
SMU5
16442A/B Fixture

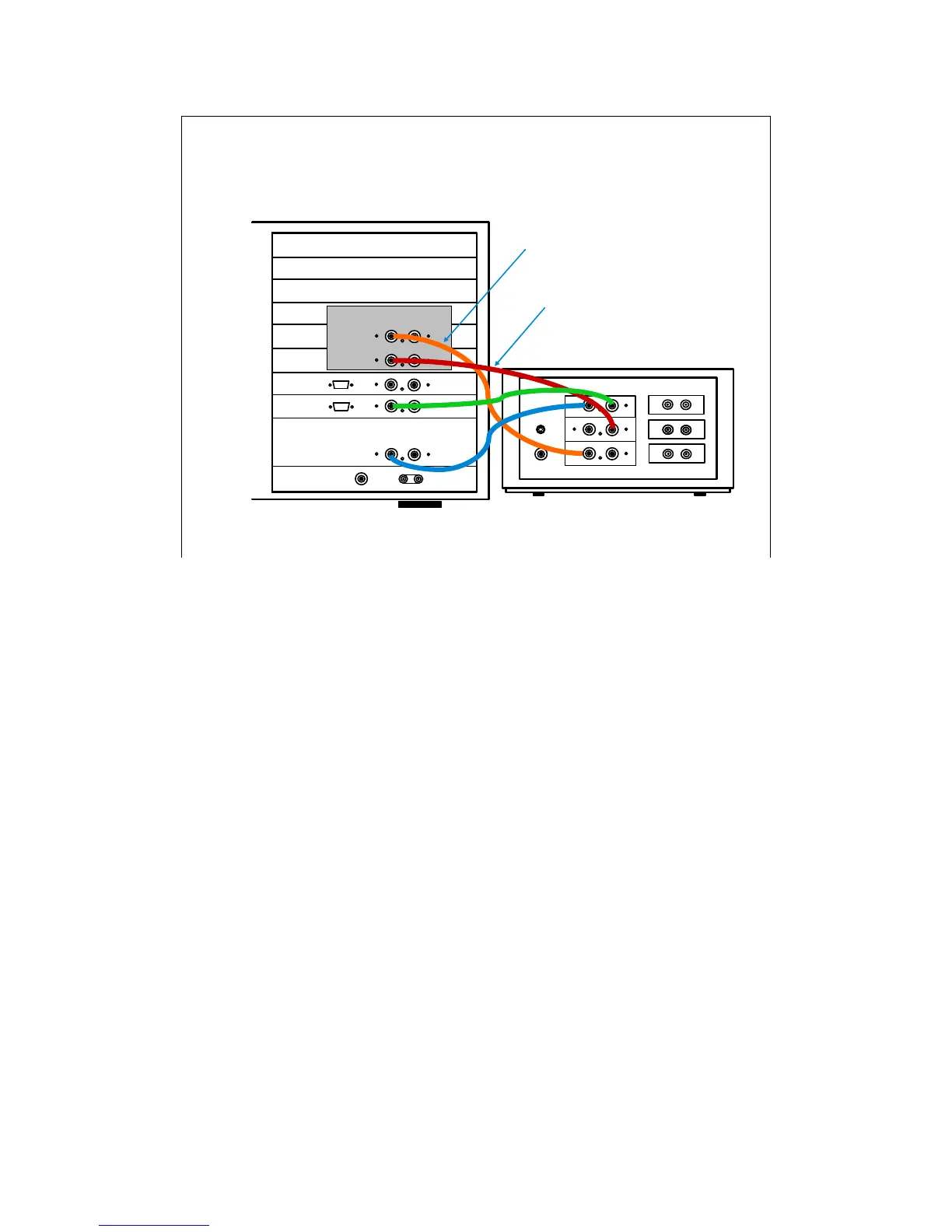

SCUU Connection Example – Direct Docking
Before connecting the SCUU, turn the B1500A off. And restart the B1500A after connection is
completed. The B1500A cannot recognize the SCUU without restart after connection.
Use normal triaxial cables or Kelvin triaxial cables to connect between the SCUU and the test fixture.
