Agilent Technologies B1500A Training Manual

Module 8
Capacitance Measurement
8-19

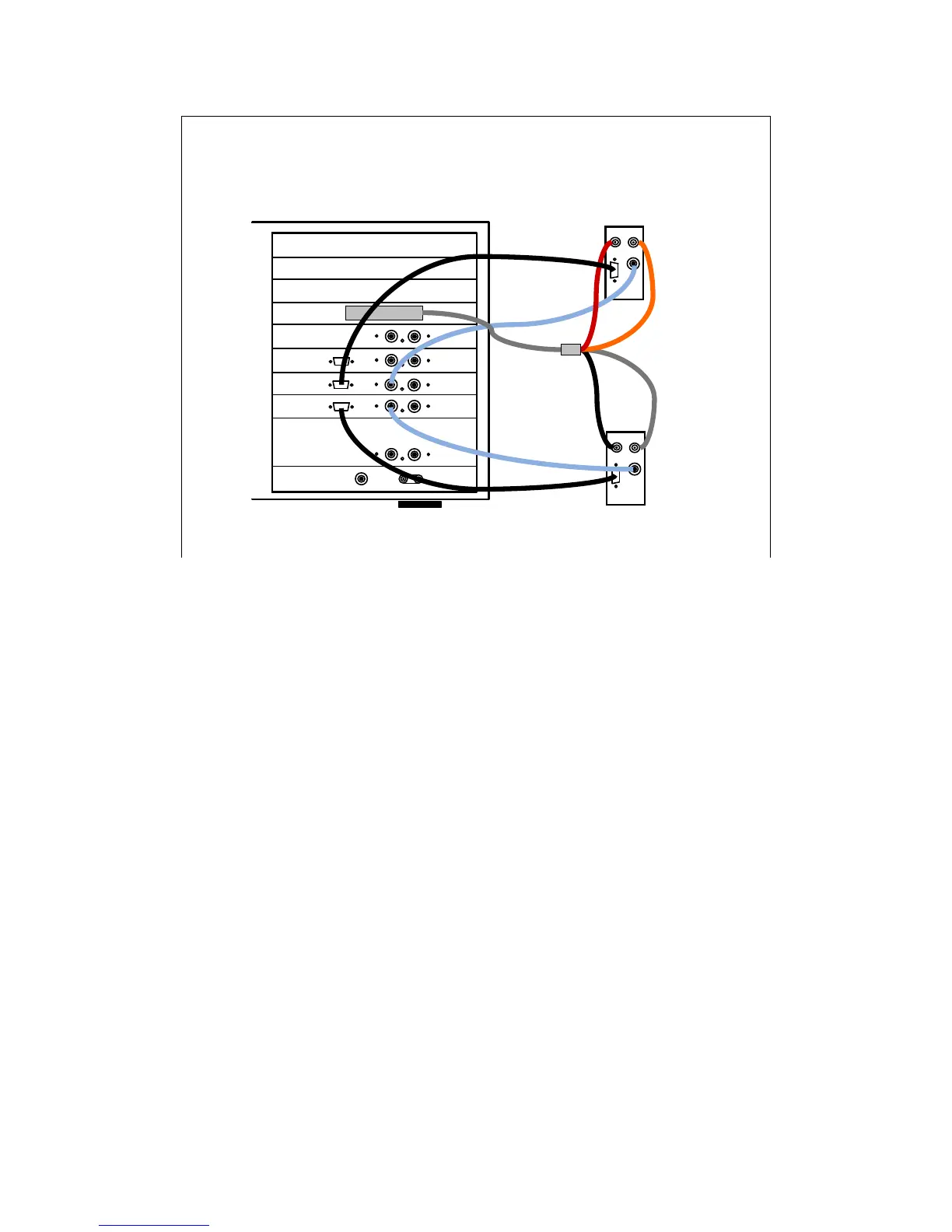

B1500A Rear View
SMU4
SMU3
SMU2
SMU1
CMU
GNDU
Hcur
Hpot
Lcur
Lpot
SMU3 Force
SMU2 Force
ASU1
ASU2
ASU to CMU/HRSMU Connection Example
To connect the ASUs, use the following cables.
CMU cable (Agilent N1300A-001/002), 1 ea.
Triax cable (a part of Agilent B5288A-001/002), 2 ea.
D-sub cable (a part of Agilent B5288A-001/002), 2 ea.
One side of the CMU cable forms the attachment used to join and fix it to the CMU. And the other
side provides four BNC connectors used to connect two ASUs as shown.
The triax cable and the D-sub cable are connected between ASU and HRSMU.
Before starting the ASU connection, turn the B1500A off. And restart the B1500A after the
connection is completed. The B1500A cannot recognize the ASUs without restart after the
connection.
