Agilent Technologies DSO3102A User Manual

Automatic Measurement Controls
Measurement Concepts
2-60
Time Measurements
There are 10 automatic time measurements:
•Frequency
• Period
• Rise Time
• Fall Time
•+Width
•-Width
•+Duty
•-Duty
• Delay 1
→2
• Delay 1
→2
The following figures show how the different time measurements are made.

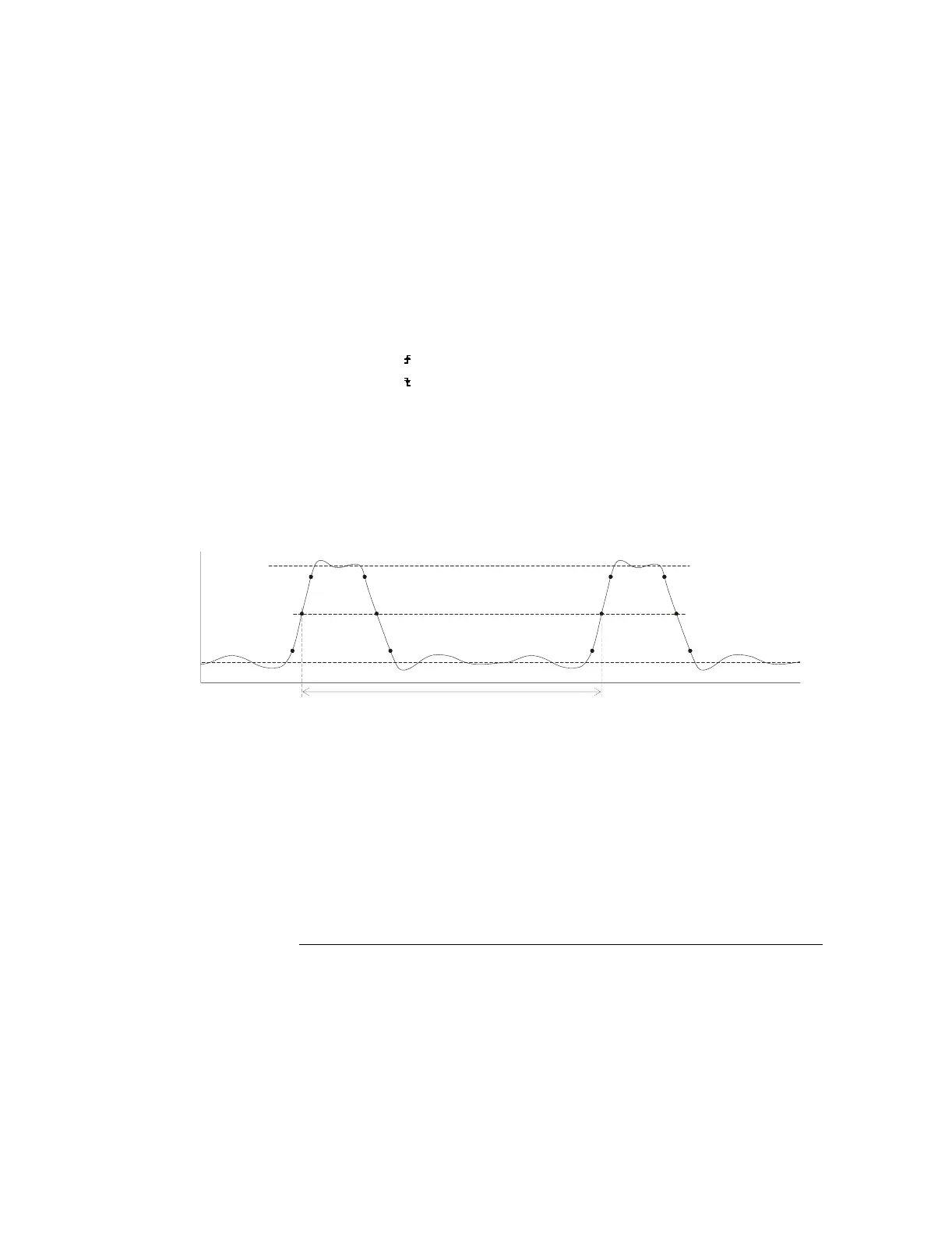

Figure 2-32
Frequency and Period Measurements
Period
Ti
me
origin
line
50%
54800b24.cdr
Top
Base
Frequency = 1/Period
