Chapter 7 Tutorial
Output Characteristics
143
7
Output Characteristics
An ideal constant-voltage power supply would have a zero output impedance
at all frequencies. Thus, as shown in Figure 7-3, the voltage would remain
perfectly constant in spite of any changes in output current demanded by the
load.
The ideal constant-current power supply exhibits an infinite output impedance
at all frequencies. Thus as Figure 7-4 indicates, the ideal constant-current
power supply would accommodate a load resistance change by altering its
output voltage by just the amount necessary to maintain its output current at
a constant value.
The output of the E3632A power supply can operate in either constant-voltage
(CV) mode or constant-current (CC) mode. Under certain fault conditions, the
power supply can not operate in either CV or CC mode and becomes
unregulated.

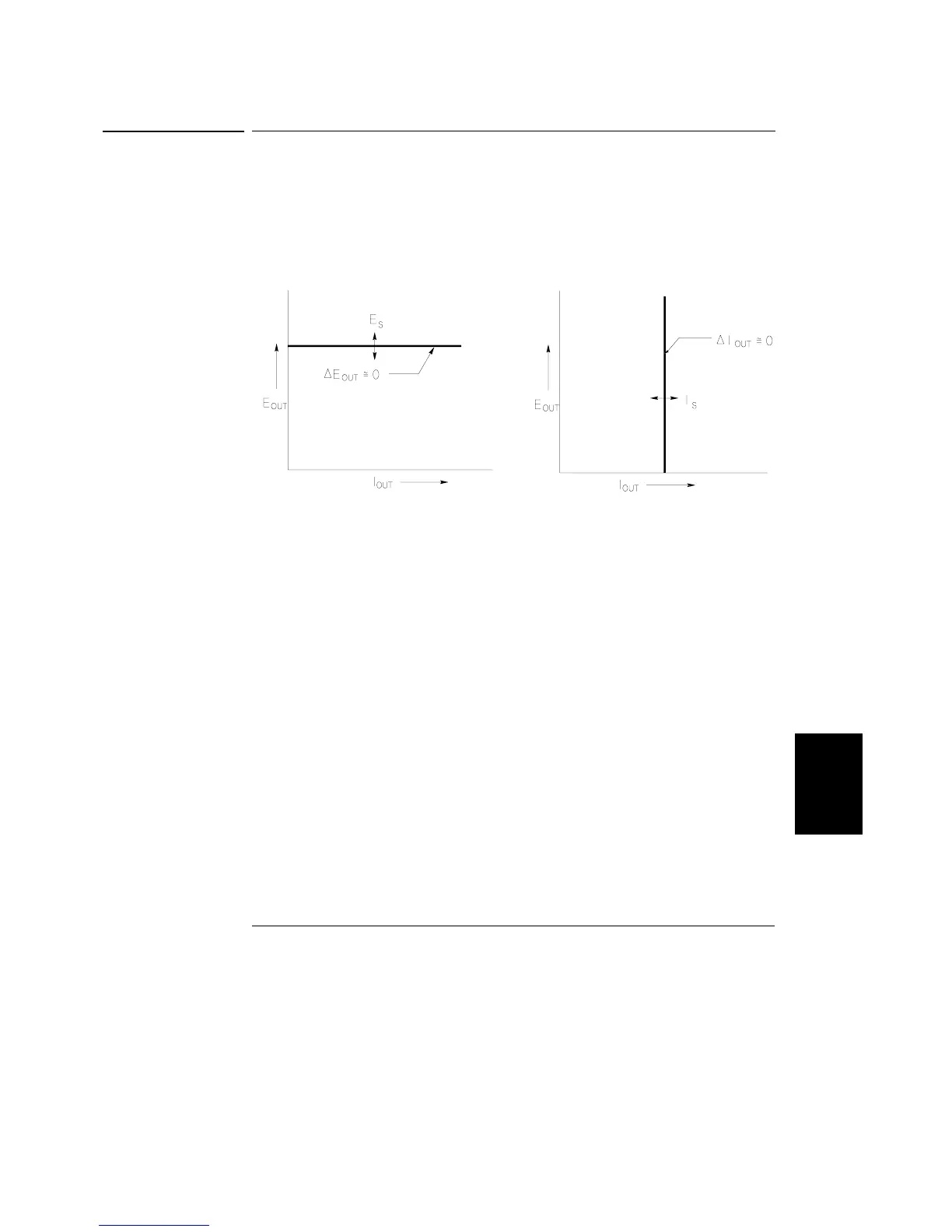

Figure 7-4. Ideal Constant Current
Power Supply
Figure 7-3. Ideal Constant Voltage
Power Supply
