Chapter 7 Tutorial
Output Characteristics
146

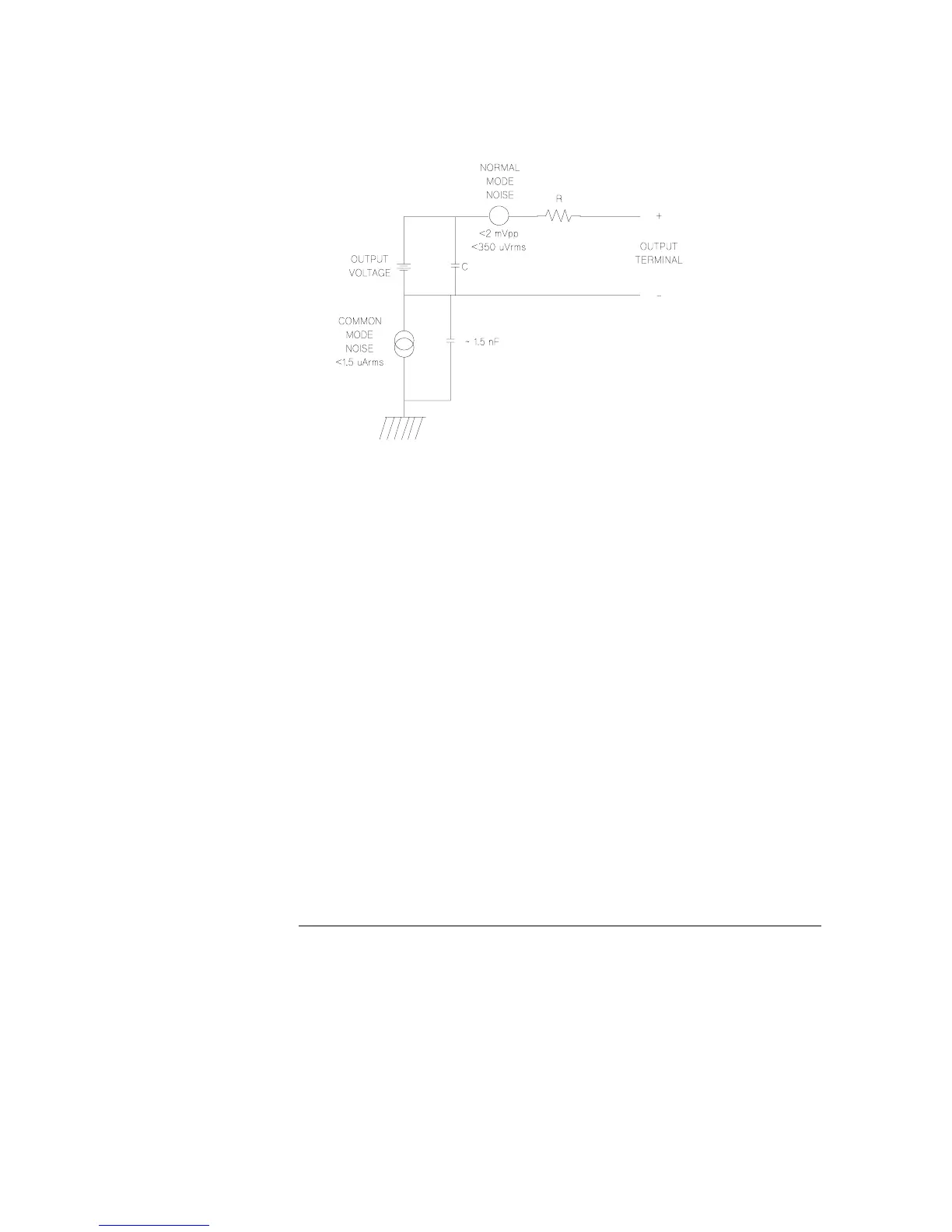

Figure 7-6. Simplified Diagram of Common Mode and Normal Mode Sources of Noise
When the load changes very rapidly, as when a relay contact is closed, the
inductance in the hook up wire and in the power supply output will cause a
spike to appear at the load. The spike is a function of the rate of change of the
load current. When very rapid changes in load are expected, a capacitor with
a low series resistance, in parallel with the power supply, and close to the load
is the best way to minimize these voltage spikes.
