Chapter 10 295
Replaceable Parts Lists and Locations
Hardware

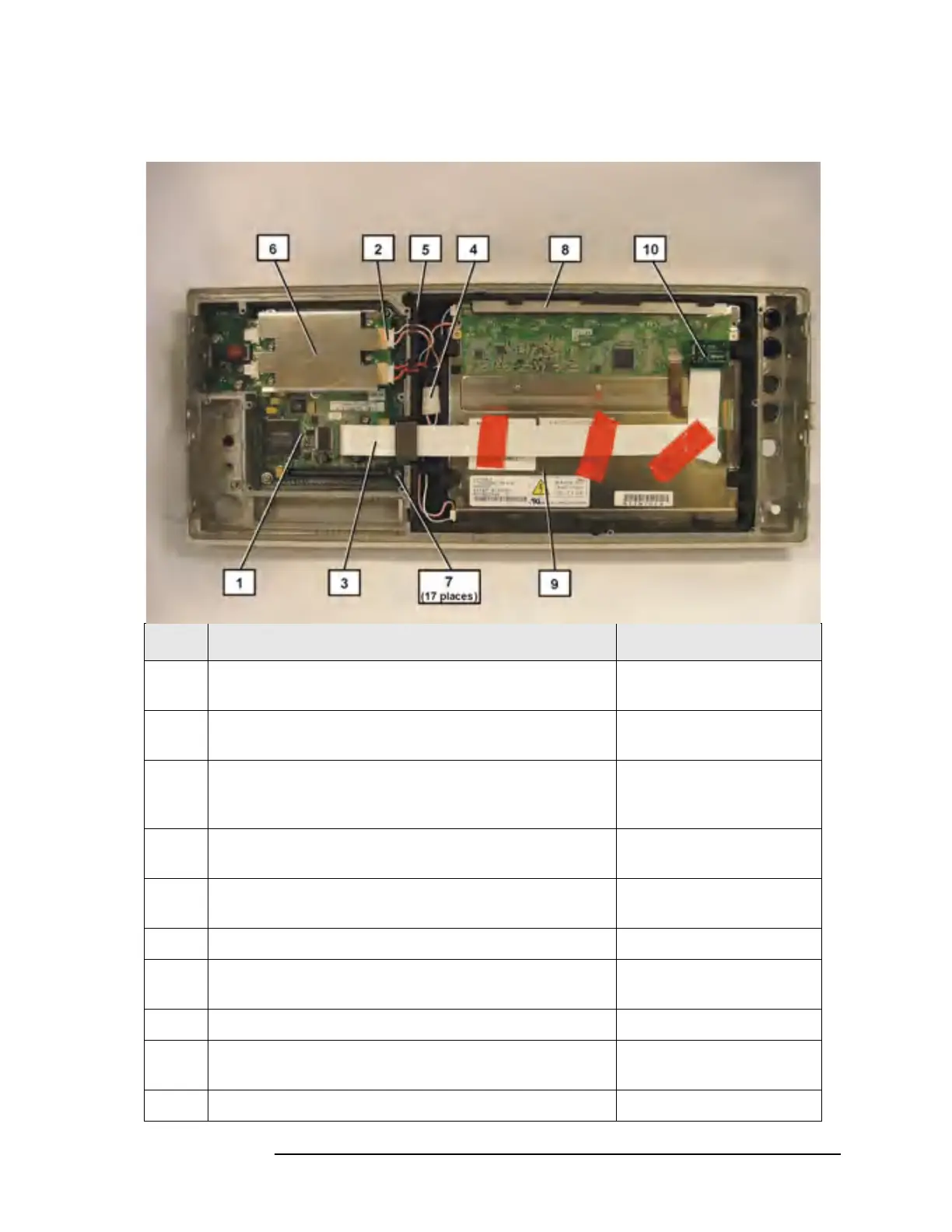

Figure 10-29 Front Panel Assemblies
Item Description Agilent Part Number
1 A2 Front Panel Interface (Includes Inverter Boards +
cable)
E4440-63266
2 A2A1 and A2A2 Inverter Boards
(under Inverter Shield)
0950-3379
3 W5 Cable Flat flex, Front Panel Interface to display
converter board (for serial prefix US/MY/SG 4611 and
above)
8121-1419
4 W27 Cable, backlight extension (for serial prefix
US/MY/SG 4644 and above)
8121-1420
5 Display Mount (serial prefix US/MY/SG 4611 and
above)
E4406-40013
6 Shield, Inverter Board E4440-00068
7 Screw M3x0.5 8mm-LG
(Crest Washer-Pan Head-TORX)
0515-0372
8 Display Pressure Plate E4406-00037
9 A1 Flat Panel Display (serial prefixes US/MY/SG 4611
and above) See Figure 10-29
2090-0897
10 A1A1 Display Converter Board E4440-63265
To Next Page
