214 Chapter 8
GPS Modulation (Option 409)
Real Time GPS
Rear Panel Signal Synchronization
Figure 8-5 illustrates the timing relationships of the GPS signals available at the signal generator rear panel.
The AUX I/O connector outputs the SYMBOL SYNC OUT, DATA CLOCK OUT, and DATA OUT signals
(refer to, “5. AUXILIARY I/O” on page 25 for more information). EVENT 1 and EVENT 2 are BNC
connectors. If the signal generator is configured with Option 1EM, EVENT 1 and EVENT 2 connectors are
changed from BNC to SMB connectors. See “Rear Panel” on page 20.

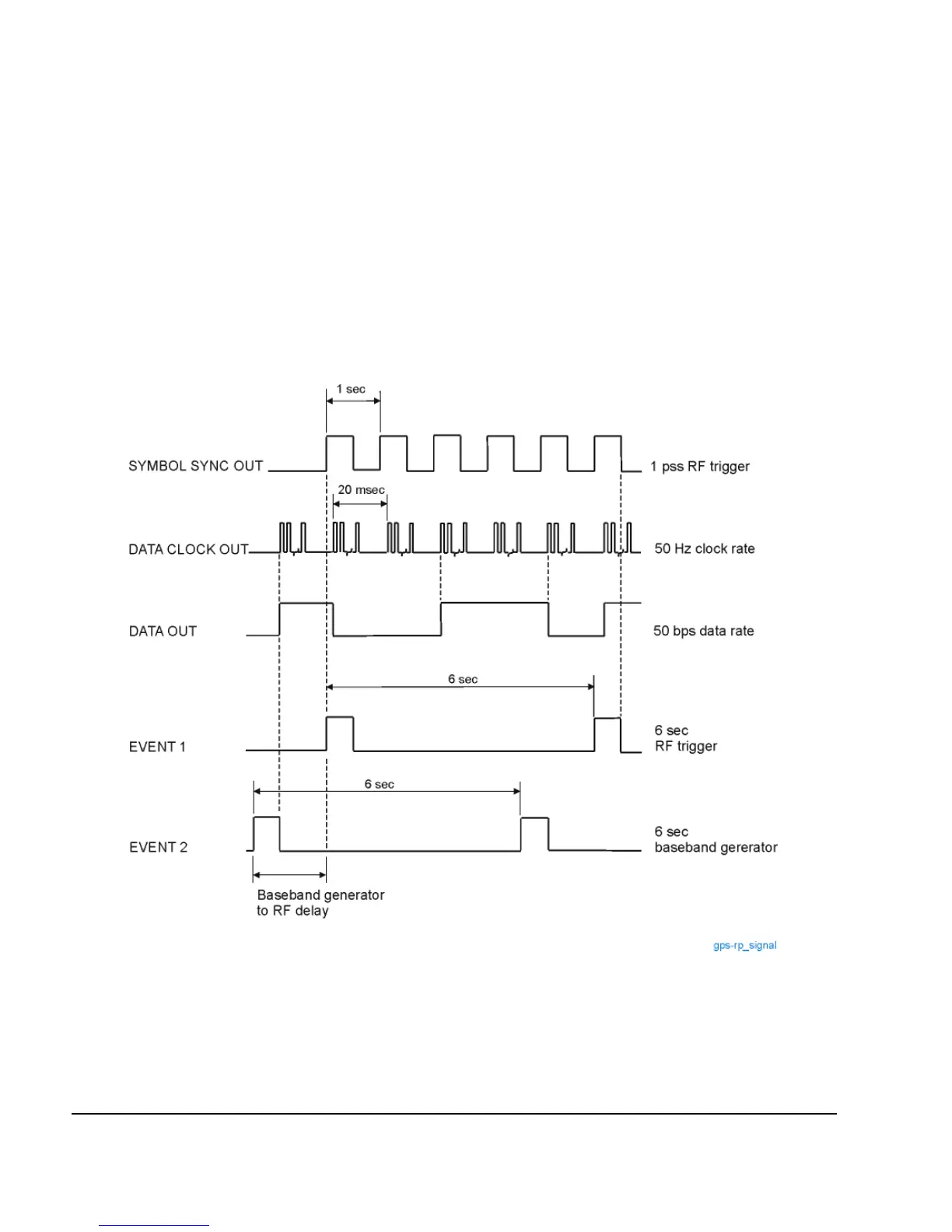

Figure 8-5 GPS Signals
