232 Chapter 10
Two–To n e Wav e f o r m G e n e rator
Creating, Viewing, and Modifying Two–Tone Waveforms

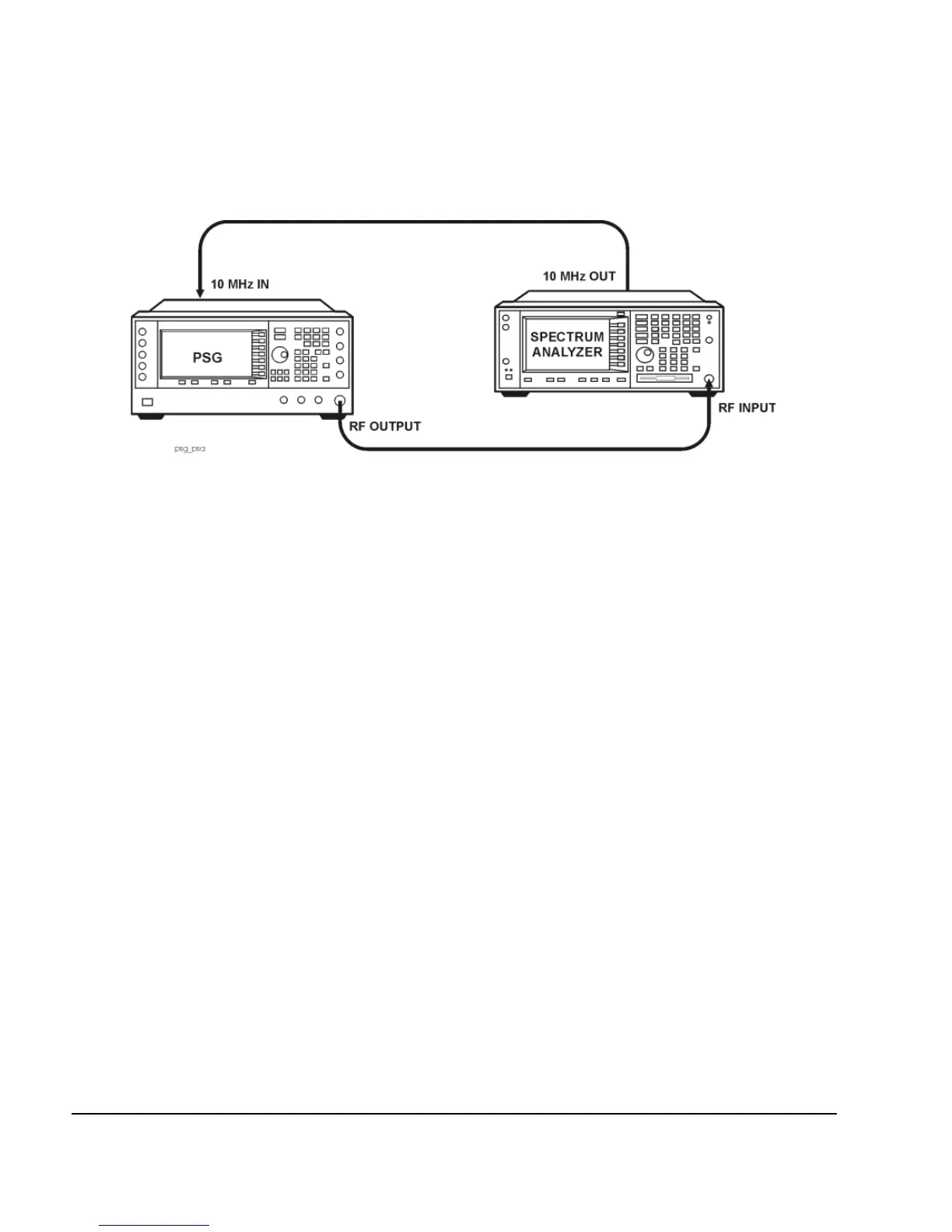

Figure 10-1 Spectrum Analyzer Setup
To Creat e a Tw o – To n e Waveform
This procedure describes how to create and a basic, center–aligned, two–tone waveform.
1. Preset the signal generator.
2. Set the signal generator RF output frequency to 20 GHz.
3. Set the signal generator RF output amplitude to 0 dBm.
4. Press
Mode > Tw o To n e > Freq Separation > 10 > MHz.
5. Press
Tw o To n e O f f O n to On.
6. Turn on the RF output.
The two–tone signal is now available at the signal generator RF OUTPUT connector. Figure 10- 2 on
page 233 shows what the signal generator display should look like after all steps have been
completed. Notice that the T–TONE, I/Q, RF ON, and MOD ON annunciators are displayed and the
parameter settings for the signal are shown in the status area of the signal generator display.
