224 Chapter 9
Multitone Waveform Generator
Creating, Viewing, and Optimizing Multitone Waveforms

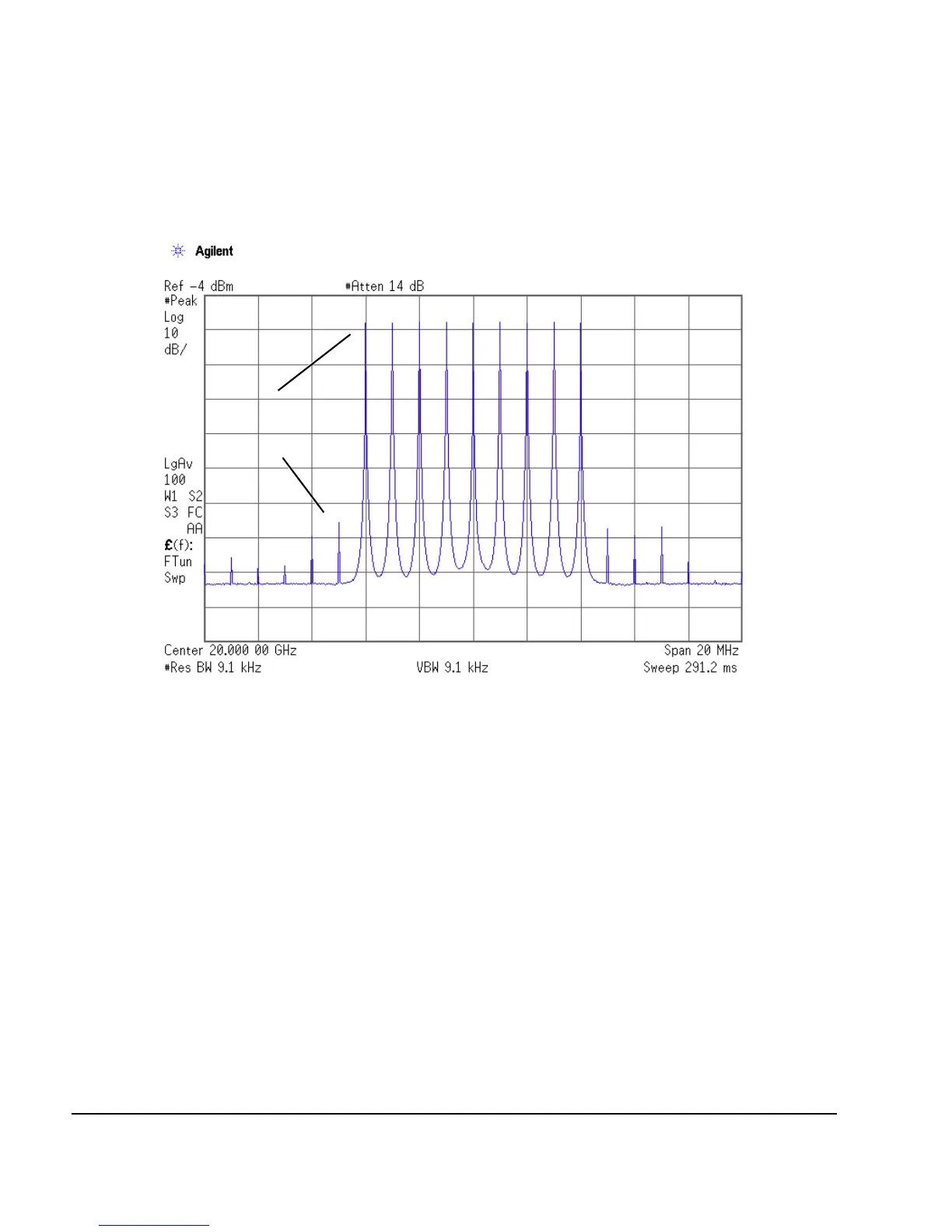

Figure 9-3
To Edit the Multitone Setup Table
This procedure builds upon the previous procedure.
1. Press
Initialize Table > Number of Tones > 10 > Enter.
2. Press
Done.
3. Highlight the value (On) in the State column for the tone in row 2.
4. Press
Toggle State.
5. Highlight the value (0 dB) in the Power column for the tone in row 4.
6. Press
Edit Item > –10 > dB.
7. Highlight the value (0) in the Phase column for the tone in row 4.
8. Press
Edit Item > 123 > deg.
Intermodulation
Distortion
Multitone
Channels
