Agilent Technologies E8257D PSG

248 Chapter 12
Peripheral Devices
N5102A Digital Signal Interface Module

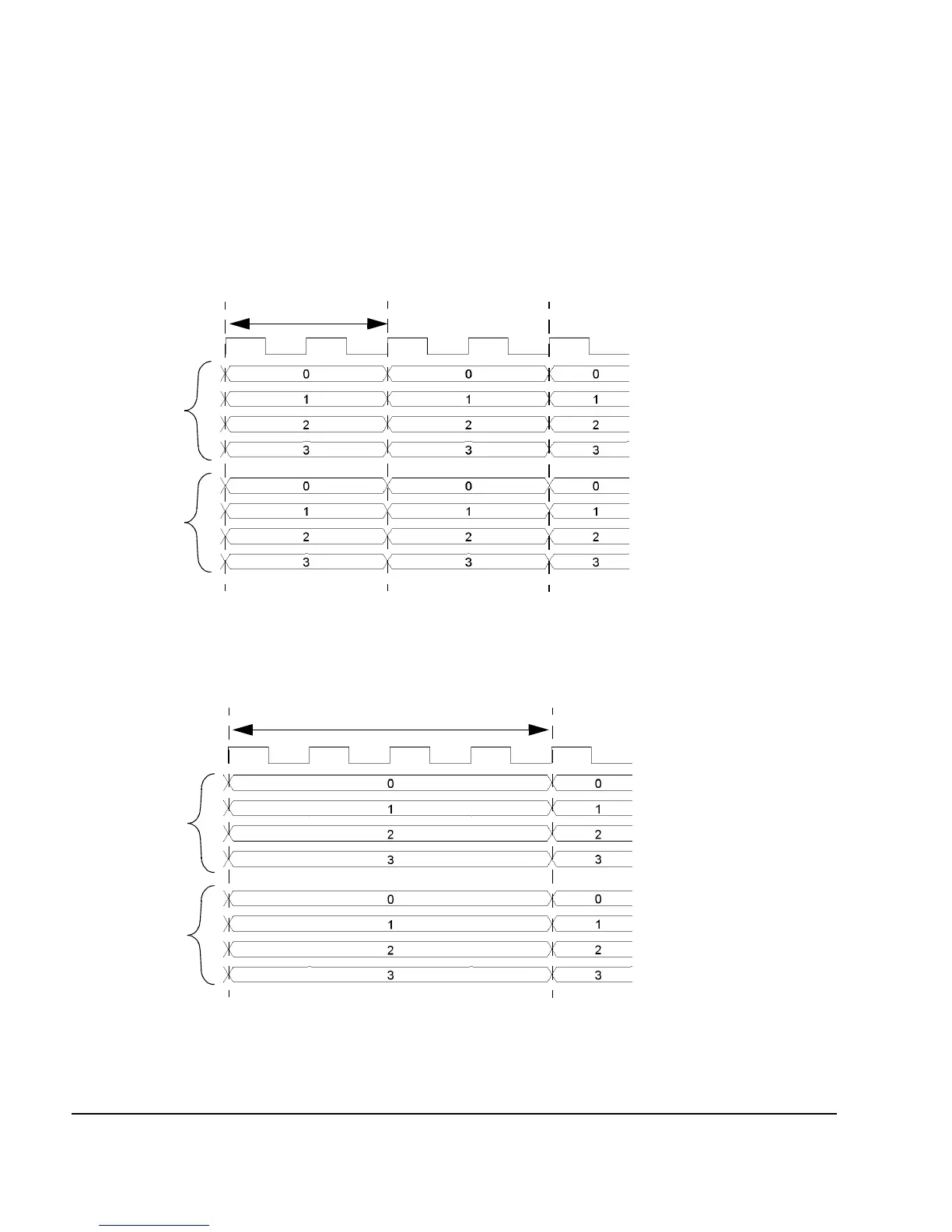

1 Sample Period
4 Clocks Per Sample
4 Clocks
Sample rate decreases by a factor of four
I sample
Q sample
Clock
4 bits per word
4 bits per word
1 Sample Period
2 Clocks Per Sample
2 Clocks
I sample
Q sample
Sample rate decreases by a factor of two
Clock
4 bits per word
4 bits per word
