Agilent InfinityLab LC Series Multicolumn Thermostats User Manual 170

11 Identifying Cables

Remote Cables

• 5188-8057 ERI to APG and RJ45 (Connector D_Subminiature 15 pin (ERI),

Connector D_Subminiature 9 pin (APG), Connector plug Cat5e (RJ45))

One end of these cables provides a Agilent Technologies APG (Analytical

Products Group) remote connector to be connected to Agilent modules. The

other end depends on the instrument to be connected to.

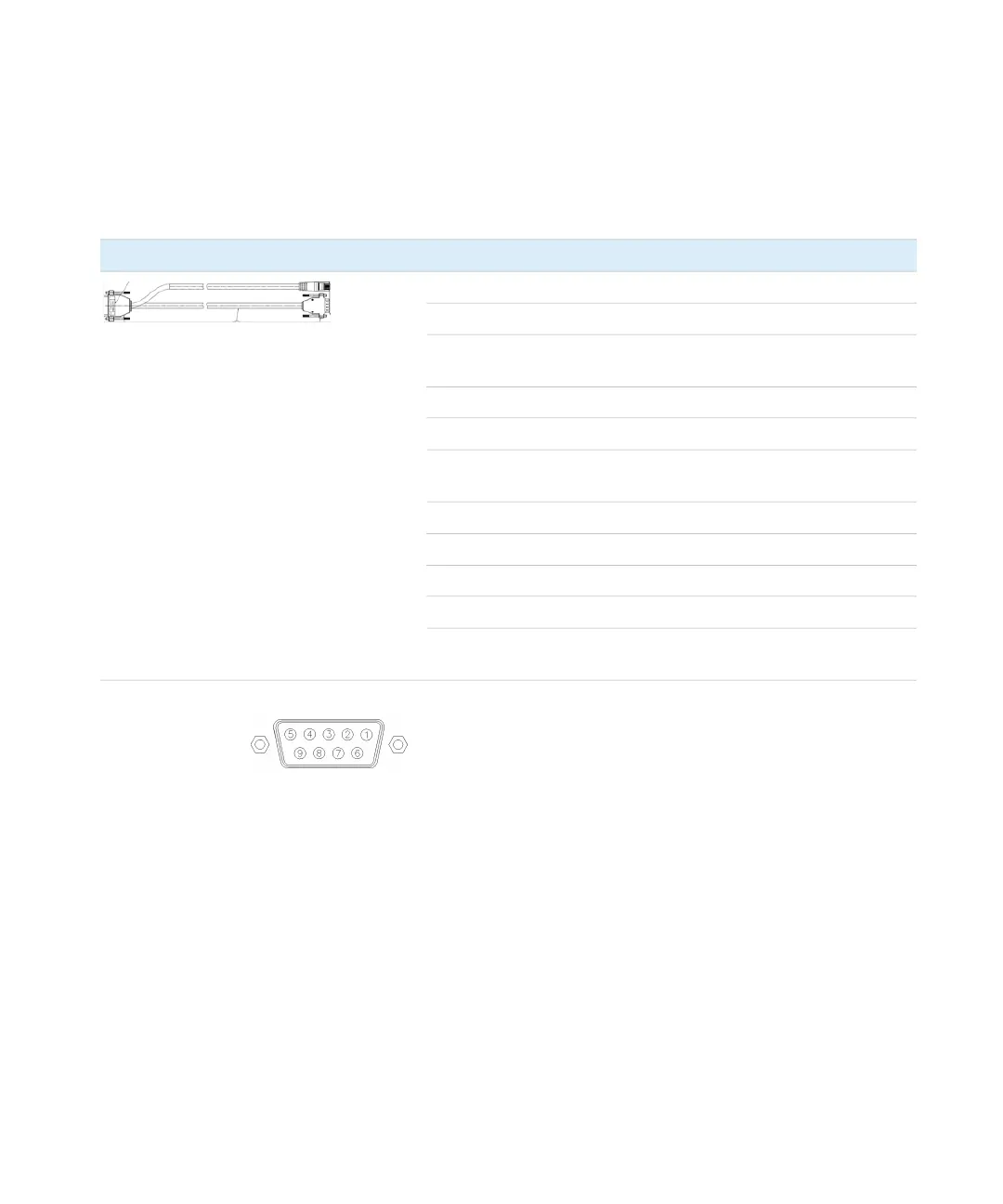

Table 26 5188-8057 ERI to APG and RJ45

p/n 5188-8057 Pin (ERI) Signal Pin (APG) Active (TTL) Pin (RJ45)

10 GND 1 5

1 Start

Request

9 High

2 Stop 8 High

3 Ready 7 High

4 Fraction Trig-

ger

5 High 4

5 Power on 6 High

6 Shut Down 4 High

7 Start 3 High

8 Prepare 2 High

Ground Cable Shield-

ing
