Agilent Technologies G7116B User Manual

Agilent InfinityLab LC Series Multicolumn Thermostats User Manual 63
3 Using the Module
Install the Divider Assembly
Install the Divider Assembly
Parts required p/n Description
G7116-60006 Divider Assembly MCT
NOT E
The Divider Assembly must be installed if different temperatures are used on the
right and the left heater element to separate these two temperature zones.

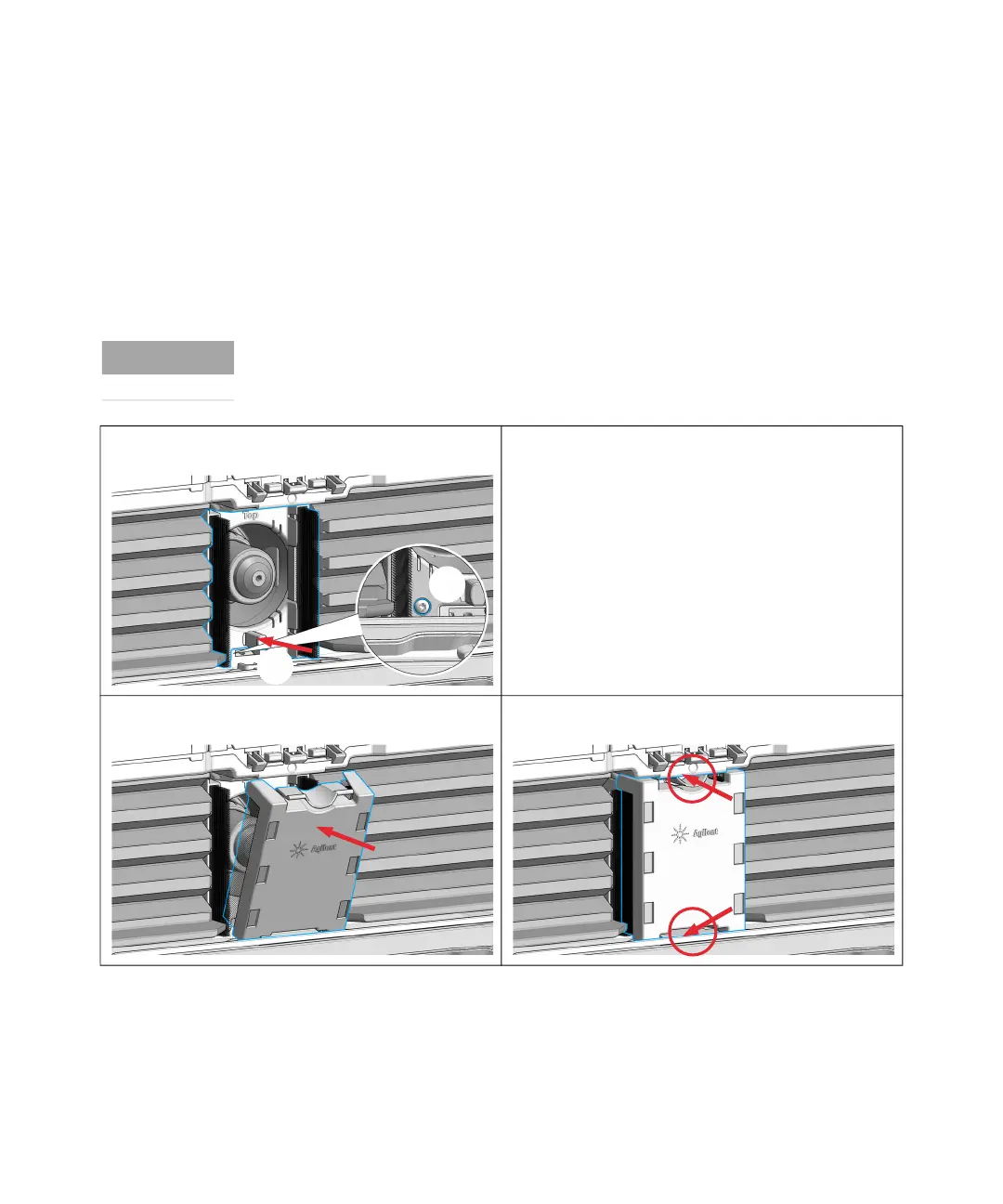

1 Push the rear part of the Divider Assembly into position
(1.) and fix it with the screw (2.).
2 Install the valve head if used.
See “Replace Valve Heads” on page 135.
3 Install all capillaries and heat exchangers required.
For details, refer to “Install Heat Exchanger” on page 48,
and “Exchange a Column” on page 52.
4 Install the front part of the Divider Assembly by putting
it on top.
5 The front plate should be flush with the top and the bot-
tom edge of the MCT housing.
1.
2.
