Agilent InfinityLab LC Series Diode Array Detectors User Manual 160
9 Maintenance

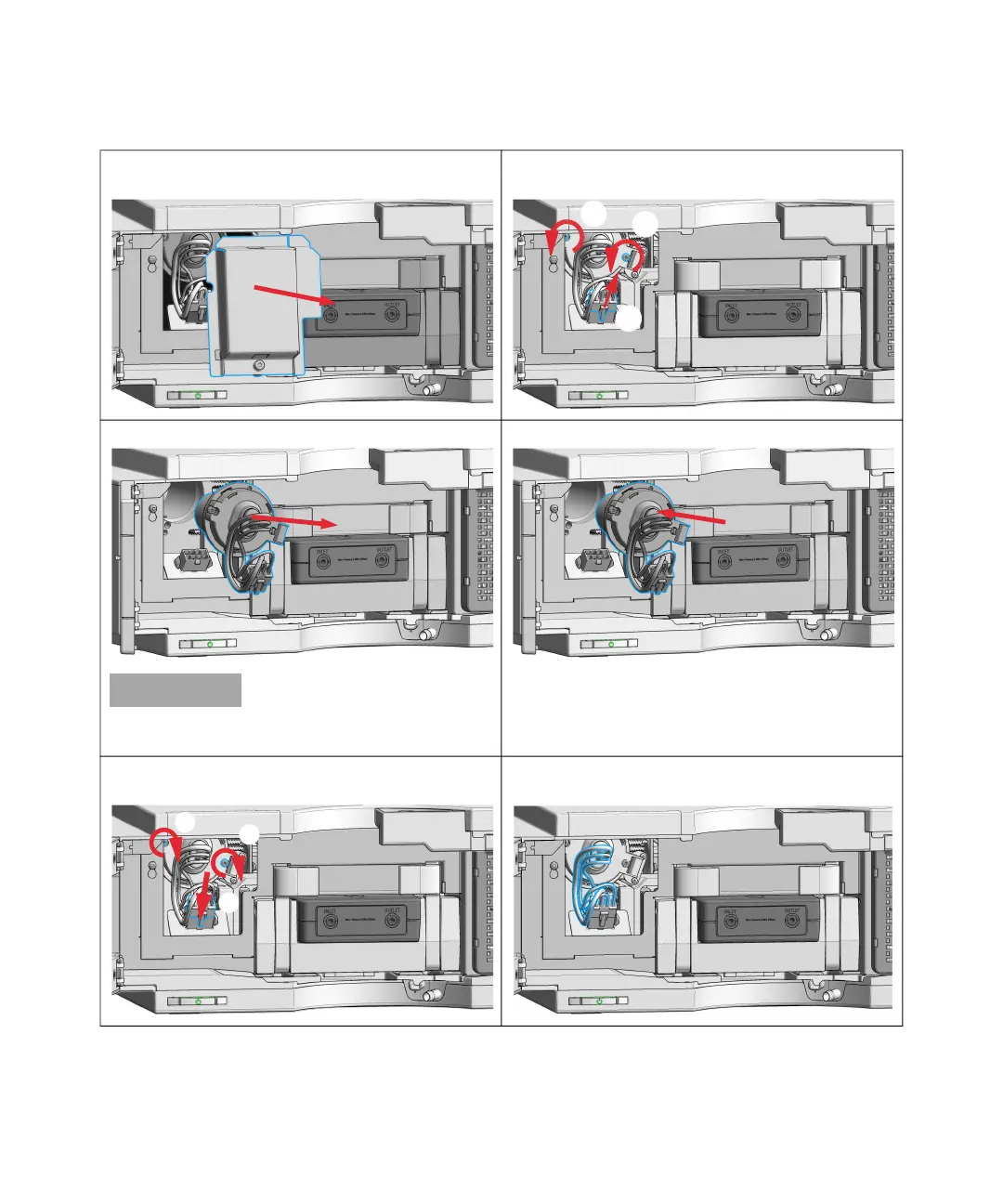

Replace the Deuterium Lamp
3 Grab the lamp cover and pull it off (it is fixed by a mag-
net in the bottom of the cover).
4 Unplug the lamp connector (1.) and unscrew the two
lamp screws (2.) (Pozidriv).
5 Remove the lamp and place it on a clean place.
NOTE
Do not touch the glass bulb with your fingers. It may reduce
the light output.
6 Insert the lamp (RFID tag on the right side).
7 Fix the lamp screws (1.) and reconnect the lamp con-
nector (2.).
8 Place the lamp cable in the lamp cover.
2.
2.
1.
1.
1.
2.
