Spectral Purity
SSB Phase Noise @Be/Hz):
‘Ruble 1-6. Offsets
carrier Freq.
100Hz1kHz10kEz100kHz
600MHzto<lGHz -78 -92 -103 -115
lGHzto<2GHz -73 -83 -92 -107
2GHzt.o<6GHz -70 -78 -83 -100
SGHzto<lOGHz -69 -78 -82 -100
lOGHzto2OGHz -66 -73 -76 -100
Phase noise decreases 6 dEVoctave below 500 MHz and reaches a floor of <-140 dFWHz.
-40
-60
Ik
IOk
Offset
IOOk
IM IOM

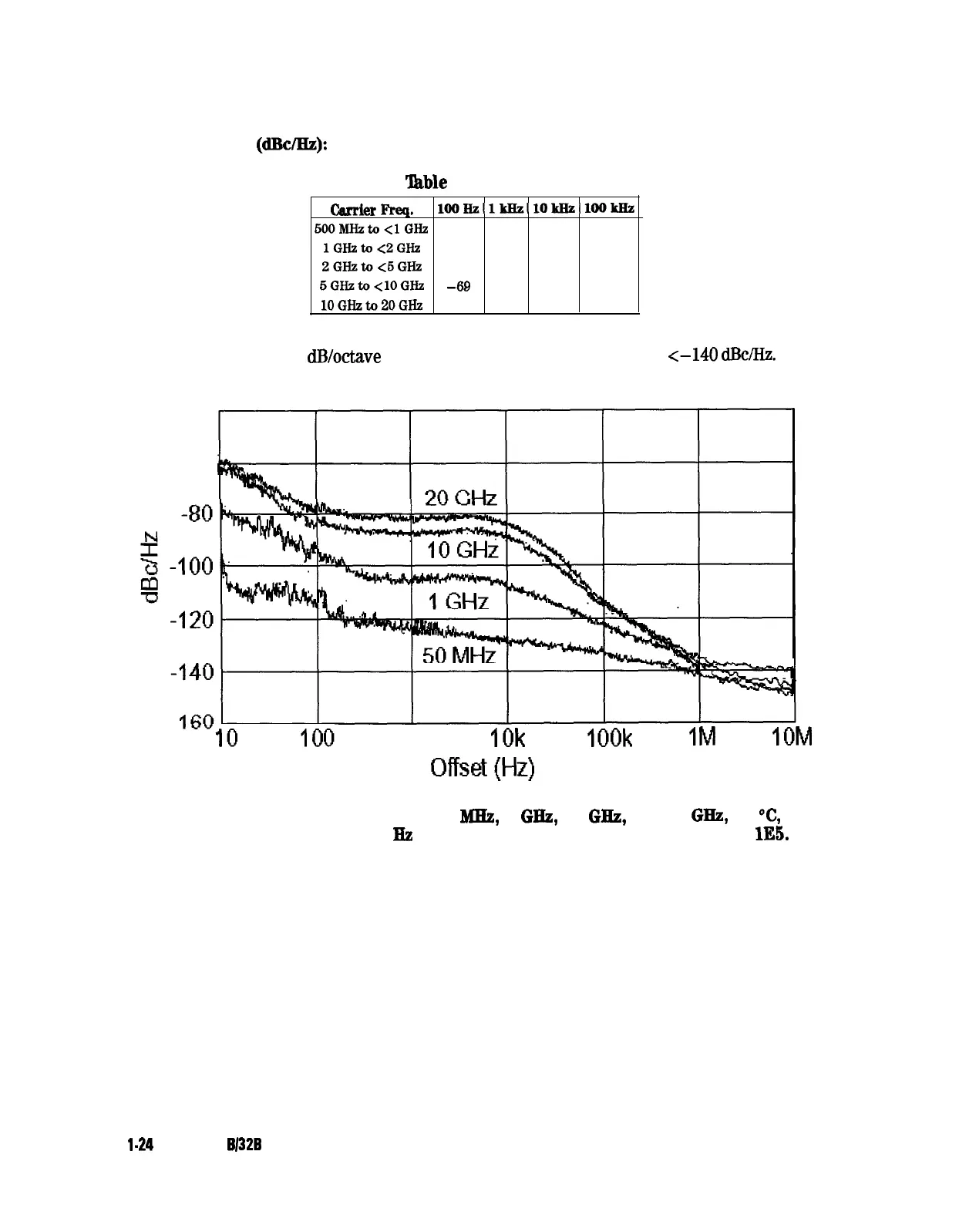

Figure l-24.
Typical single-sideband phase noise at 50 MHz, 1 GBz, 10 GHz, and 20 GHz, 25 “C, CW
mode. Offsets less than 100 Hz require the high stability timebase, Option lE5.
