Static Mode (Configuring the LAN Manually)
In static mode you must set up the IP address, subnet mask, and default
gateway that is compatible with your network infrastructure. If it is not
correctly setup, the power meter is not be visible on your network.
1 Switch the power on to the power meter.
2 Press ,
Remote Interfaces to display the Remote Interface display
(see Figure 1- 2).
3 Press
Network Manual to set the IP Address, Subnet Mask. The Default
Gateway value is an optional setting.
To individually specify the settings use the arrow keys, Select key, and
use the numeric keys followed by
Enter keys to enter the required IP
address, subnet mask, and default gateway.
The values can range between 0.0.0.0 and 255.255.255.255.

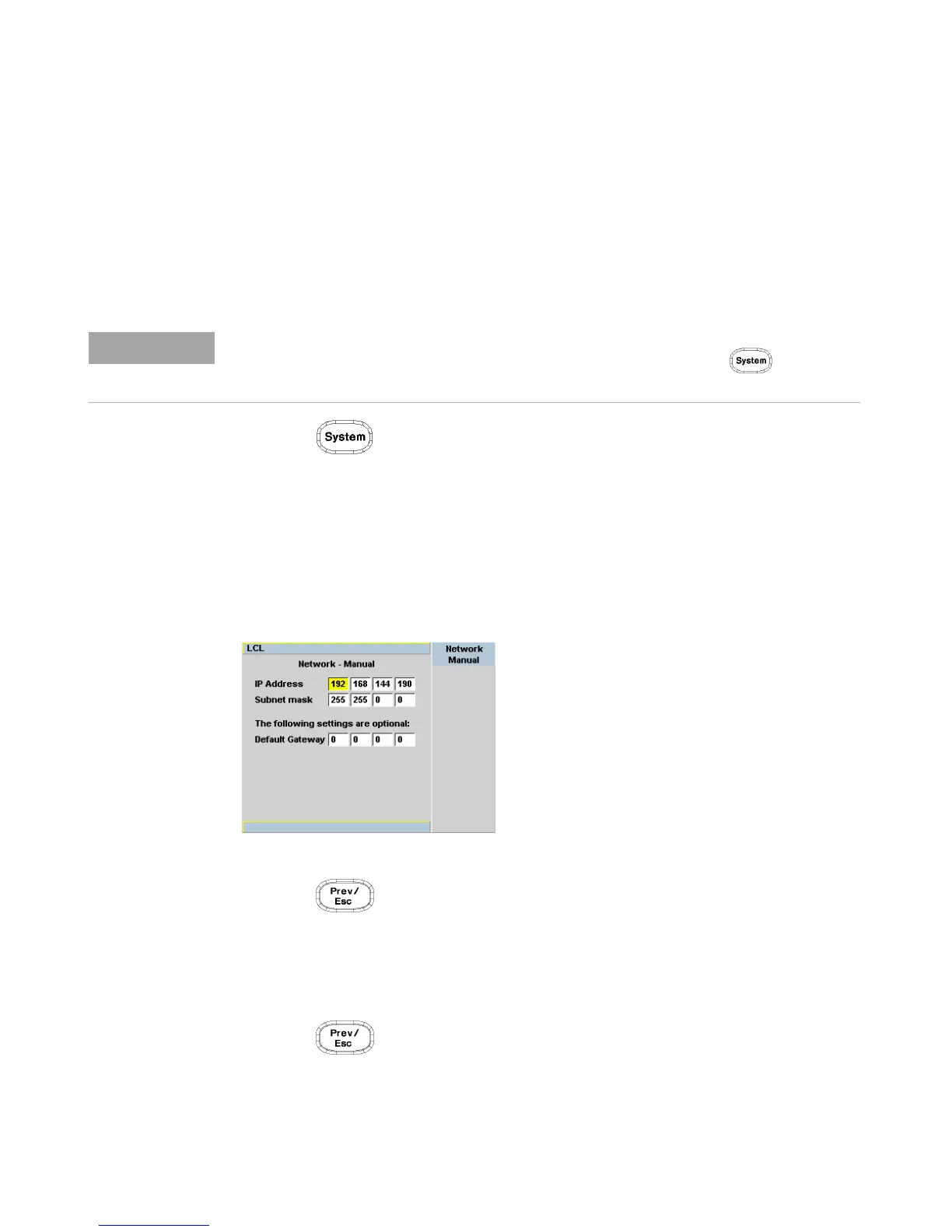

Figure 1-4 Typical Manual Entry LAN Network Interface
4 Press , to return to the Remote Interface display.
5 Press
Restart Network.
A pop- up appears for 5 seconds (see Figure 1- 3). Monitor the Status at
the bottom of the Remote Interface display to see when the server has
assigned an address.
6 Press , to return to a measurement screen.
If you configure an invalid IP address or an IP address that is used by another device or
host, an error message is generated. This error can be read by pressing ,
Error List or
by using the SYSTem:ERRor? command.
