Agilent Technologies N5183A Service Guide
4
of 1
of 1 rating
202 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Agilent N
5161A/62A/81
A/82A/83A M
XG
Signal Generators Service Guide
Assembly Replacement
A7 Micro-Deck (N
5183A only - Option 1EM)
3-60

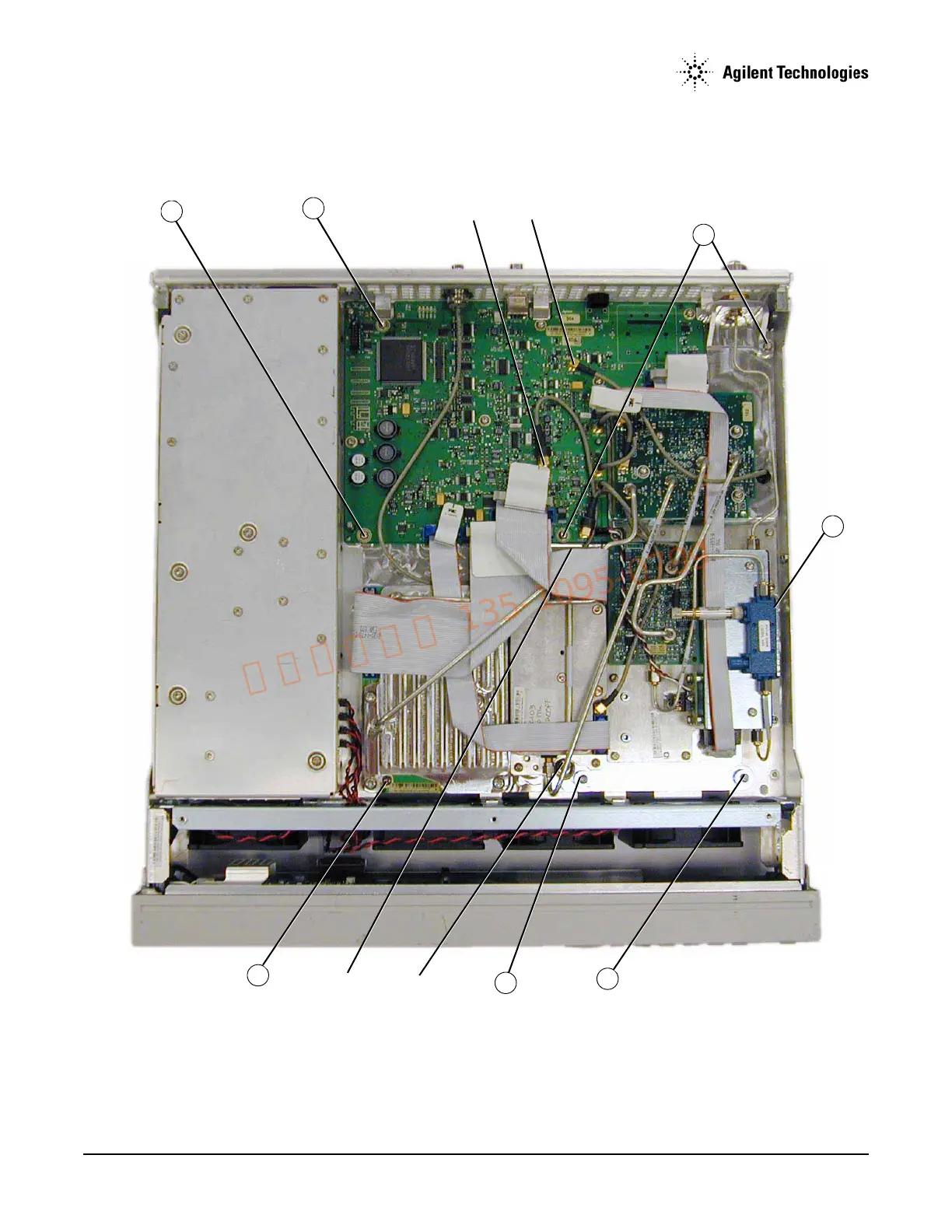

Figure 3-33A7 Micro Deck (N5182A only - Option 1EM)
W15
W14
W13
W12
1
1
1
1
1
1
1
