12 Agilent N5161A/62A/81A/82A/83A MXG Signal Generators Installation Guide
Getting Started
Configuring for Remote Control
Configuring for Remote Control
1
LAN Configuration

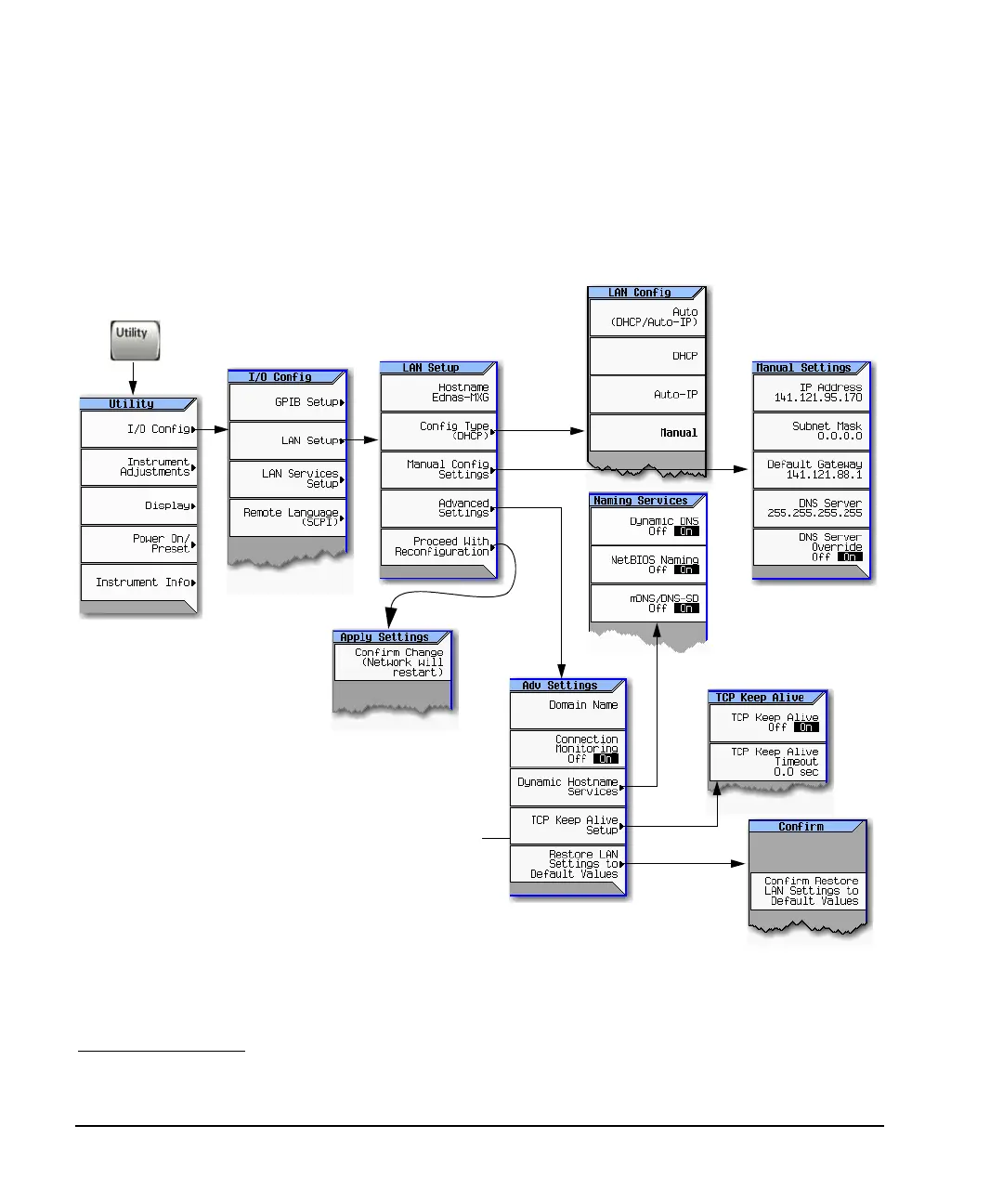

Configuring the LAN Interface
1
For the N5161A/62A these softkey menus and features are only available through the Web-Enabled MXG ATE or through SCPI
commands. Refer to “Configuring the MXG ATE” on page 7, to the Programming Guide, and to the SCPI Command Reference.
NOTES
Use a 100Base-T LAN cable to connect
the signal generator to the LAN.
Use a crossover cable to connect the
signal generator directly to a PC.
For details on using the instrument
remotely, see the Programming Guide.
Listed in the
Programming Guide
For details on a key, press Help and then the desired key.
To Next Page
