F14 USER MANUAL 11
2.1.4 ASSEMBLY/DISASSEMBLY
You can use F14 in two modes: handheld or mounted on a helmet. Assemble
the equipment as instructed after you decide how to use it.
Before use, install the batteries. F14 uses two 18650 lithium-ion batteries. The
installation procedure is as follows:
Unscrew the two covers of the battery compartments.
Check the polarity of the batteries and place the batteries into the designated
position with the correct polarity.
Tighten the covers of the battery compartments.
In handheld use, no helmet support is required. What you need are the main
body of the goggle and the battery holder. The procedure for installing F14 for
handheld use is as follows:
Take out the main body of the goggle and the battery holder.
Install the ocular lens hood if needed.
Align the broad side of the battery holder with that of the goggle in the correct
direction.
Press the battery holder until it clicks and the assembly is completed.
The procedure for disassembling handheld F14 is as follows:
Turn off the infrared I2 switch of the goggle and the main power of the battery
holder.
Pull out the disassembly pull of the battery holder and lift it upward.
Separated the battery compartment and the main body of the goggle.

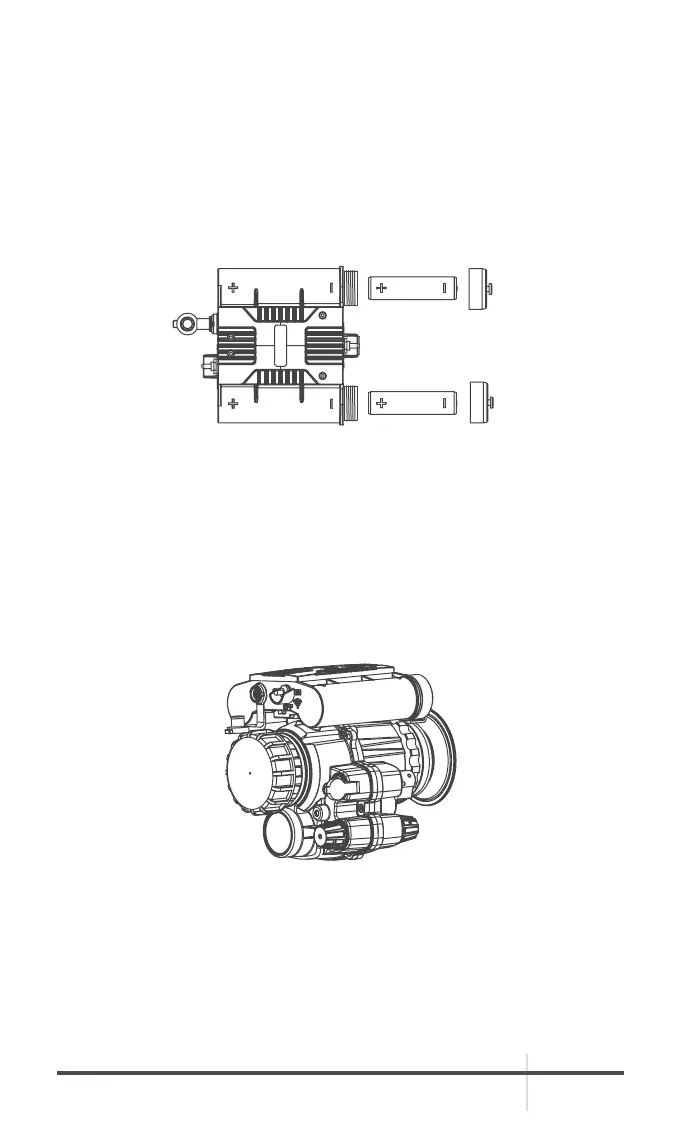

FIGURE 2-4. INSTALLING THE BATTERIES FOR F14
FIGURE 2-5. F14 FOR HANDHELD USE
