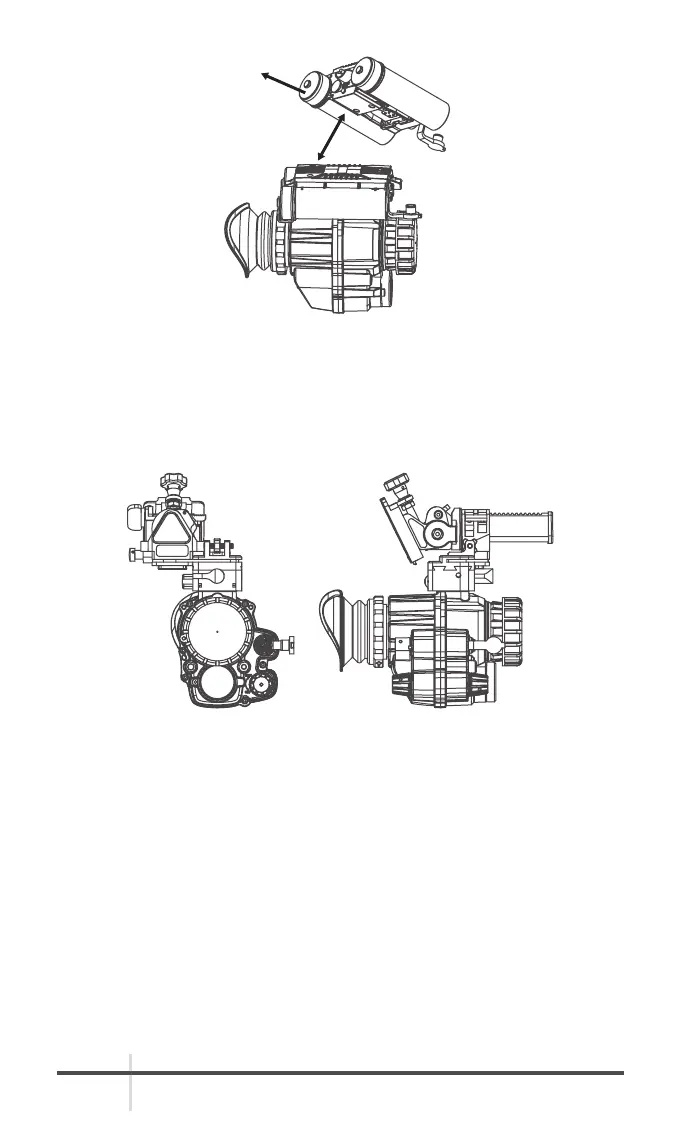

FIGURE 2-6. DISASSEMBLING HANDHELD F14
When using this equipment on a helmet, you need to fix the helmet support on
the helmet. F14 is compatible with various multi-functional shrouds and hook-
loop helmets. The procedure for installing a helmet-based F14 is as follows:
Install the helmet support on the shroud.
Attach the hook-loop support of the battery holder to the hook-loop fastener in
the middle of the rear part of the helmet.
Align the broad side of the battery holder with that of the hook-loop support.
Press the battery holder until it clicks.
Connect the power cable of the hook-loop support and the helmet support, with
the female and male white points aligned.
Install the ocular lens hood on the main body of the goggle if needed.
Align the broad side of the quick removal interface with that of the goggle
interface on the helmet support. Then lift the main body of the goggle upward
until it clicks.
The procedure for disassembling helmet-mounted F14 is as follows:
Turn off the power: Turn off the infrared I2 switch of the goggle and the main
power of the battery holder.
