Power Hoe 900 / 900-S 19
3. Devices and Operating Elements
Type 900-S
3
Safety circuit Lever

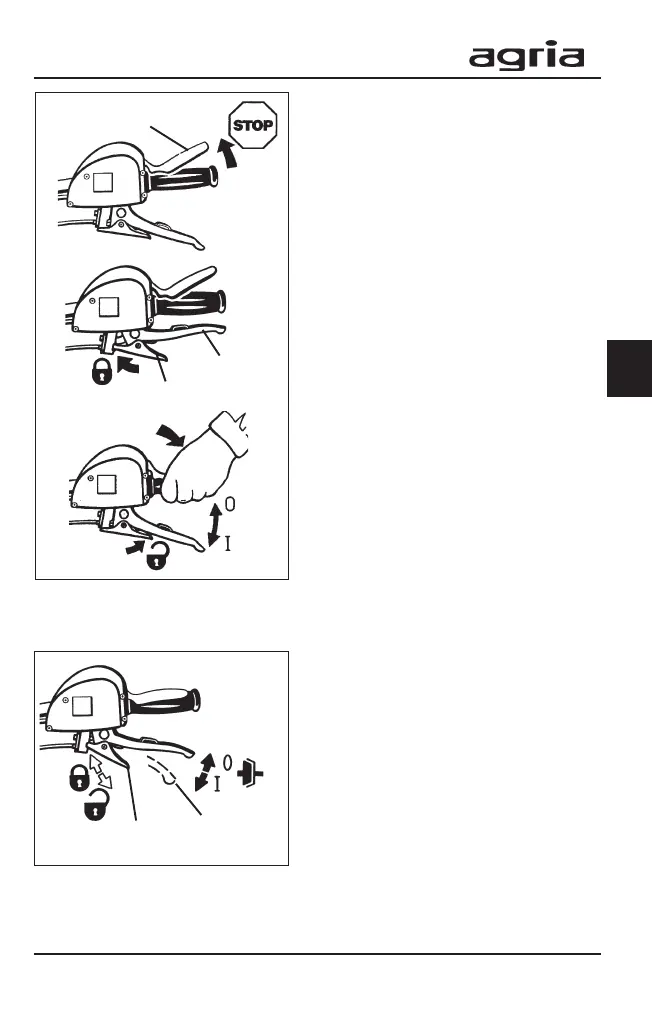

The power hoe is equipped with a safety
circuit lever.
Stop position: When releasing the le-
ver (A/15), the ignition system is shut off
(engine is off).
Beware – engine keeps running due to cen-
trifugal mass.
Start position: For starting the engine
and for short breaks, pull the hand clutch
lever (A/24) and lock with pawl (A/25).
Operating position: To operate (hoe-
ing) the machine, press the safety circuit
lever (A/15) down.
W
Do not tie down the safety
circuit lever!
I
The safety circuit lever also
serves to shut off the engine
in an emergency. Release the safety cir-
cuit lever to shut off the engine immedi-
ately. The lever automatically goes to STOP
position.
Clutch
The machine is fitted with a bevel clutch.
This is actuated via the clutch hand lever
(A/24). Pull the lever to disengage the gear
and to stop the engine driving the hoeing
tools. When the lever is opened (pawl A/25
is not locked) a positive connection be-
tween engine and tools is made and the
hoeing tools start operating.
With the control lever pulled, this connec-
tion is disengaged and the tools come to a
stop.
A/25
A/24
A/15
A/25
A/24
