3. Devices and Operating Elements
3
Depth bar
The depth bar slows down the power
hoe as the machine is moving forward
in the field. The deeper the depth bar
setting, the deeper the working depth
of the hoeing tools.
Version 0900 021/121

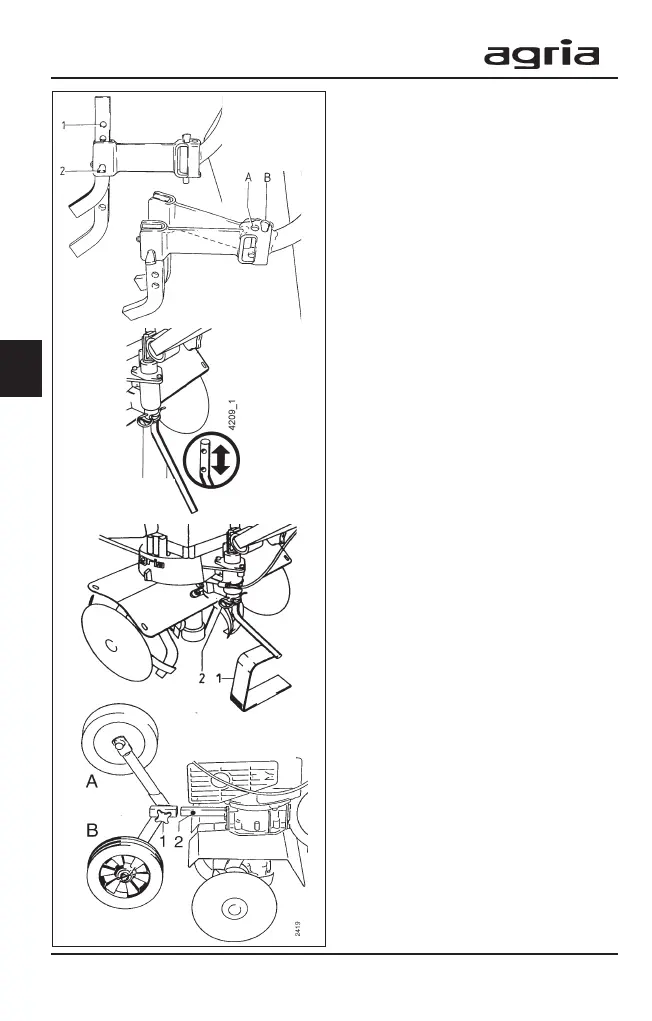

You can set the depth bar (G/1) to one of
four different positions using the locking
pin (G/2). The bar is set to either rigid or
pivoting position. To set it to rigid posi-
tion, lock it into hole ”A”, and to set it to
pivoting position, lock it into hole ”B”.
Version 0900 131
To set the working depth of the depth
bar (A/21), fit the R-clip (A/27) in one of
the two attachment holes.
Optional depth bar
(Available for version 0900 131)
This depth bar (accessory no. 1001 511)
(H/1) is available as an option to improve
depth control in loose soils. Remove the
standard depth bar (A/21) and replace
it by the optional depth bar, using the
R-clip (H/2).
Front support wheel
For easier transport, use the front sup-
port wheel. Slide the wheel onto the
wheel pin (I/2) at the front of the ma-
chine while the wheel is in position B.
Then tighten the attachment screw (I/1).
You can leave the front support wheel
on the machine for hoeing in position A.
G
I
H
27 21
