20 Power Hoe 900 / 900-S
3. Devices and Operating Elements
3
W
Never adjust the steering
handle during operation
– danger!

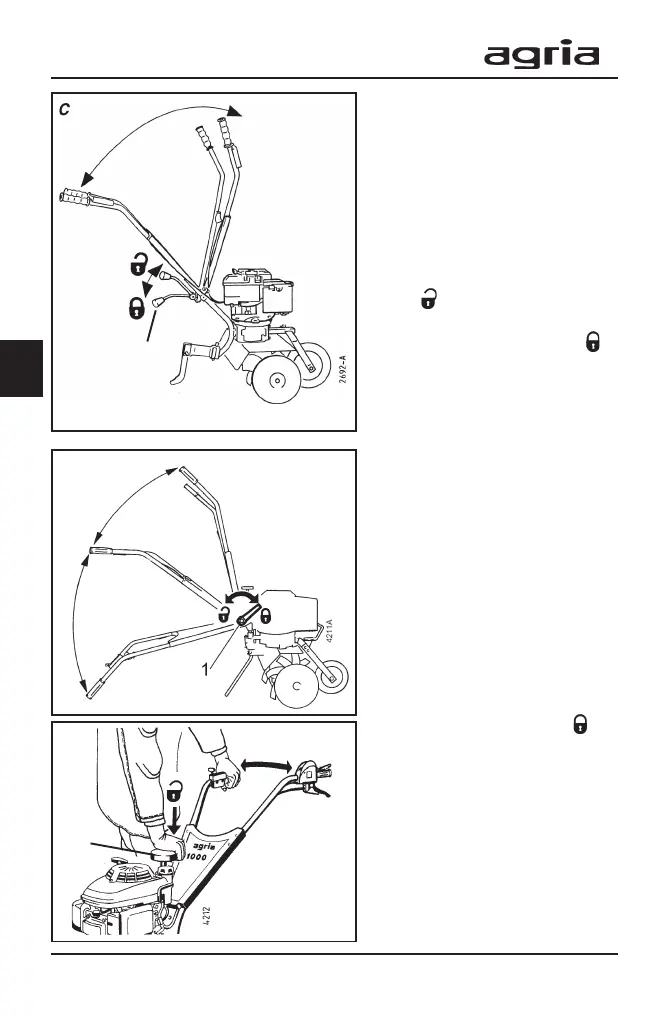

Steering Handle
Version 0900 021/121
Steering Handle Height
Adjustment
Pull the eccentric lever (A/17) up-
wards . Raise the steering han-
dle to the desired height. Then push
the eccentric lever back down .
When the eccentric lever loses its
grip, retighten the hexagon nut.
Steering Handle Park Position
To store the power hoe in narrow
rooms, fold the handlebar all the way
up or down into park position.
Steering Handle
Version 0900 131
Steering Handle Height
Adjustment
Undo the clamping lever (D/1) until
the gears are exposed. Move the
steering handle to the desired
height and the gears into mesh and
retighten the clamping lever .
Side Adjustment
Push down the push plate (E/2). At
the same time, give the handlebar
a slight pull, as illustrated, and move
it to the left or right.
Then release the push plate and
slightly move the handlebar to the
right and left until the gears lock into
mesh.
D
E
2
A/17
