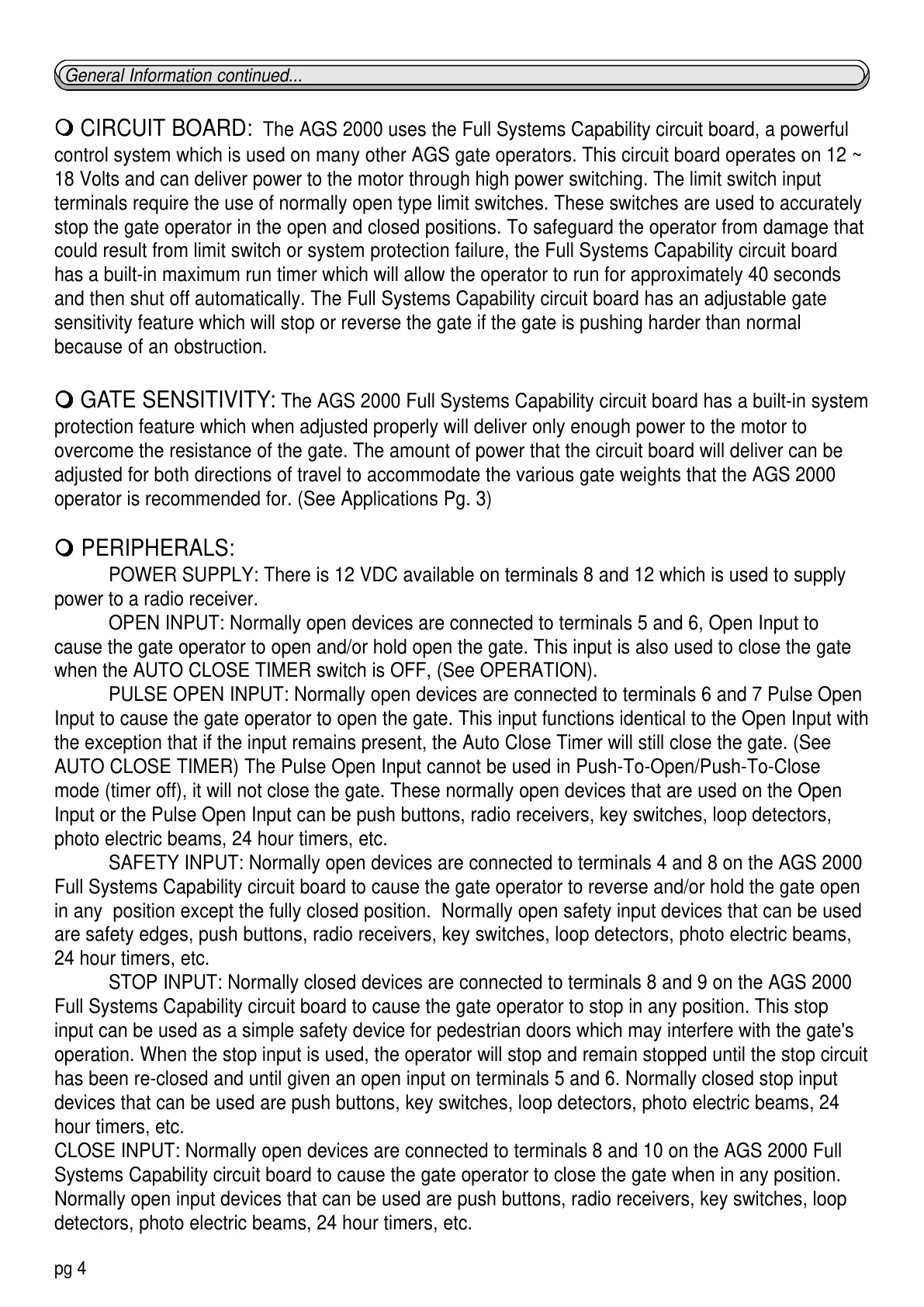

m CIRCUIT BOARD: The AGS 2000 uses the Full Systems Capability circuit board, a powerful
control system which is used on many other AGS gate operators. This circuit board operates on 12 ~
18 Volts and can deliver power to the motor through high power switching. The limit switch input
terminals require the use of normally open type limit switches. These switches are used to accurately
stop the gate operator in the open and closed positions. To safeguard the operator from damage that
could result from limit switch or system protection failure, the Full Systems Capability circuit board
has a built-in maximum run timer which will allow the operator to run for approximately 40 seconds
and then shut off automatically. The Full Systems Capability circuit board has an adjustable gate
sensitivity feature which will stop or reverse the gate if the gate is pushing harder than normal
because of an obstruction.
mm
mm
m GATE SENSITIVITY: The AGS 2000 Full Systems Capability circuit board has a built-in system
protection feature which when adjusted properly will deliver only enough power to the motor to
overcome the resistance of the gate. The amount of power that the circuit board will deliver can be
adjusted for both directions of travel to accommodate the various gate weights that the AGS 2000
operator is recommended for. (See Applications Pg. 3)
mm
mm
m PERIPHERALS:
POWER SUPPLY: There is 12 VDC available on terminals 8 and 12 which is used to supply
power to a radio receiver.
OPEN INPUT: Normally open devices are connected to terminals 5 and 6, Open Input to
cause the gate operator to open and/or hold open the gate. This input is also used to close the gate
when the AUTO CLOSE TIMER switch is OFF, (See OPERATION).
PULSE OPEN INPUT: Normally open devices are connected to terminals 6 and 7 Pulse Open
Input to cause the gate operator to open the gate. This input functions identical to the Open Input with
the exception that if the input remains present, the Auto Close Timer will still close the gate. (See
AUTO CLOSE TIMER) The Pulse Open Input cannot be used in Push-To-Open/Push-To-Close
mode (timer off), it will not close the gate. These normally open devices that are used on the Open
Input or the Pulse Open Input can be push buttons, radio receivers, key switches, loop detectors,
photo electric beams, 24 hour timers, etc.
SAFETY INPUT: Normally open devices are connected to terminals 4 and 8 on the AGS 2000
Full Systems Capability circuit board to cause the gate operator to reverse and/or hold the gate open
in any position except the fully closed position. Normally open safety input devices that can be used
are safety edges, push buttons, radio receivers, key switches, loop detectors, photo electric beams,
24 hour timers, etc.
STOP INPUT: Normally closed devices are connected to terminals 8 and 9 on the AGS 2000
Full Systems Capability circuit board to cause the gate operator to stop in any position. This stop
input can be used as a simple safety device for pedestrian doors which may interfere with the gate's
operation. When the stop input is used, the operator will stop and remain stopped until the stop circuit
has been re-closed and until given an open input on terminals 5 and 6. Normally closed stop input
devices that can be used are push buttons, key switches, loop detectors, photo electric beams, 24
hour timers, etc.
CLOSE INPUT: Normally open devices are connected to terminals 8 and 10 on the AGS 2000 Full
Systems Capability circuit board to cause the gate operator to close the gate when in any position.
Normally open input devices that can be used are push buttons, radio receivers, key switches, loop
detectors, photo electric beams, 24 hour timers, etc.
