AGS 2000 - General Information

pg 3

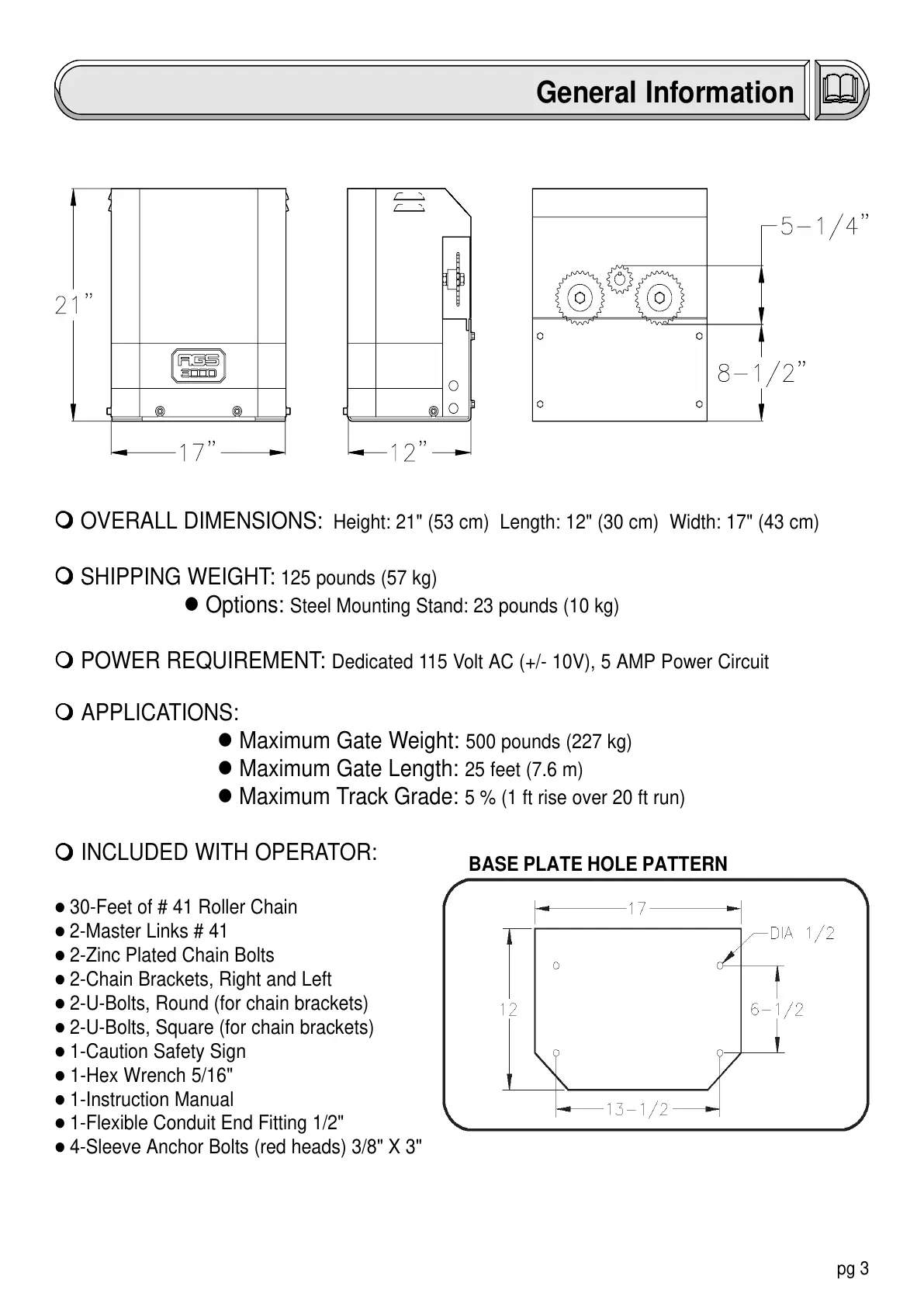

General Information
BASE PLATE HOLE PATTERN
mm
mm
m OVERALL DIMENSIONS: Height: 21" (53 cm) Length: 12" (30 cm) Width: 17" (43 cm)
mm
mm
m SHIPPING WEIGHT: 125 pounds (57 kg)
l Options: Steel Mounting Stand: 23 pounds (10 kg)
mm
mm
m POWER REQUIREMENT: Dedicated 115 Volt AC (+/- 10V), 5 AMP Power Circuit
mm
mm
m APPLICATIONS:
l Maximum Gate Weight: 500 pounds (227 kg)
l Maximum Gate Length: 25 feet (7.6 m)
l Maximum Track Grade: 5 % (1 ft rise over 20 ft run)
mm
mm
m INCLUDED WITH OPERATOR:
l 30-Feet of # 41 Roller Chain
l 2-Master Links # 41
l 2-Zinc Plated Chain Bolts
l 2-Chain Brackets, Right and Left
l 2-U-Bolts, Round (for chain brackets)
l 2-U-Bolts, Square (for chain brackets)
l 1-Caution Safety Sign
l 1-Hex Wrench 5/16"
l 1-Instruction Manual
l 1-Flexible Conduit End Fitting 1/2"
l 4-Sleeve Anchor Bolts (red heads) 3/8" X 3"
