pg 12

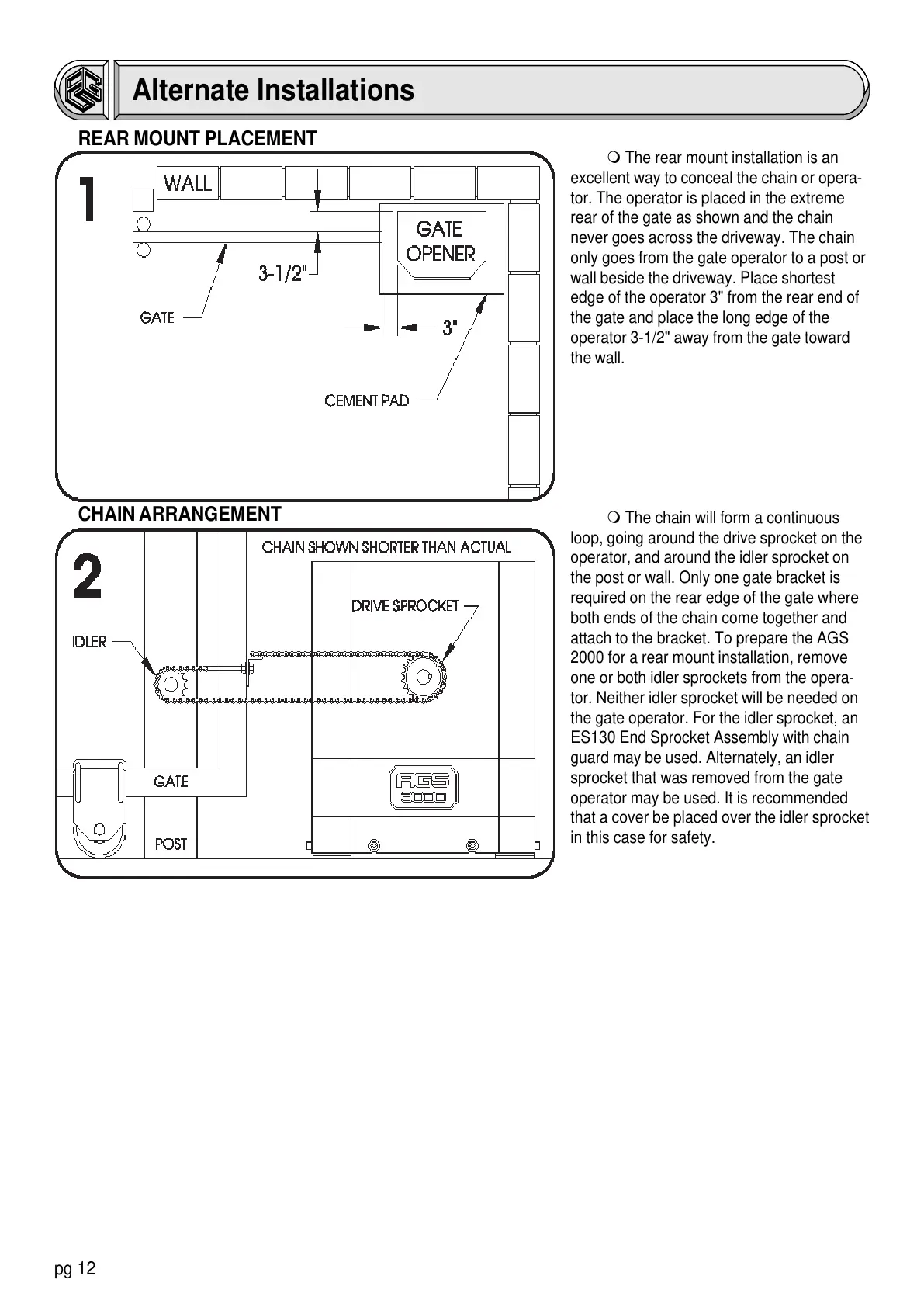

Alternate Installations
m The rear mount installation is an
excellent way to conceal the chain or opera-
tor. The operator is placed in the extreme
rear of the gate as shown and the chain
never goes across the driveway. The chain
only goes from the gate operator to a post or
wall beside the driveway. Place shortest
edge of the operator 3" from the rear end of
the gate and place the long edge of the
operator 3-1/2" away from the gate toward
the wall.
m The chain will form a continuous
loop, going around the drive sprocket on the
operator, and around the idler sprocket on
the post or wall. Only one gate bracket is
required on the rear edge of the gate where
both ends of the chain come together and
attach to the bracket. To prepare the AGS
2000 for a rear mount installation, remove
one or both idler sprockets from the opera-
tor. Neither idler sprocket will be needed on
the gate operator. For the idler sprocket, an
ES130 End Sprocket Assembly with chain
guard may be used. Alternately, an idler
sprocket that was removed from the gate
operator may be used. It is recommended
that a cover be placed over the idler sprocket
in this case for safety.
REAR MOUNT PLACEMENT
CHAIN ARRANGEMENT
