pg 11

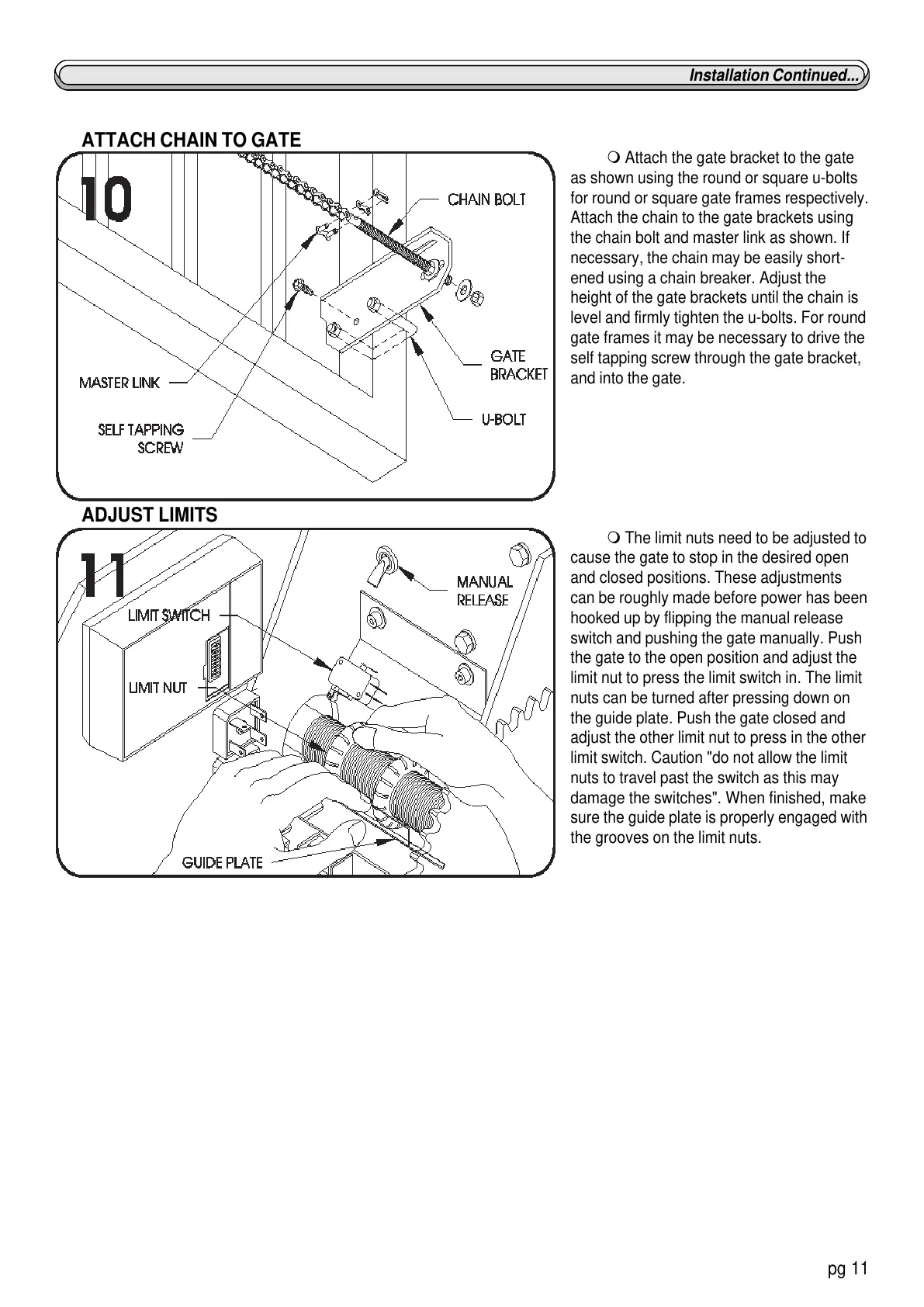

Installation Continued...
m Attach the gate bracket to the gate
as shown using the round or square u-bolts
for round or square gate frames respectively.
Attach the chain to the gate brackets using
the chain bolt and master link as shown. If
necessary, the chain may be easily short-
ened using a chain breaker. Adjust the
height of the gate brackets until the chain is
level and firmly tighten the u-bolts. For round
gate frames it may be necessary to drive the
self tapping screw through the gate bracket,
and into the gate.
m The limit nuts need to be adjusted to
cause the gate to stop in the desired open
and closed positions. These adjustments
can be roughly made before power has been
hooked up by flipping the manual release
switch and pushing the gate manually. Push
the gate to the open position and adjust the
limit nut to press the limit switch in. The limit
nuts can be turned after pressing down on
the guide plate. Push the gate closed and
adjust the other limit nut to press in the other
limit switch. Caution "do not allow the limit
nuts to travel past the switch as this may
damage the switches". When finished, make
sure the guide plate is properly engaged with
the grooves on the limit nuts.
ATTACH CHAIN TO GATE
ADJUST LIMITS
