pg 10

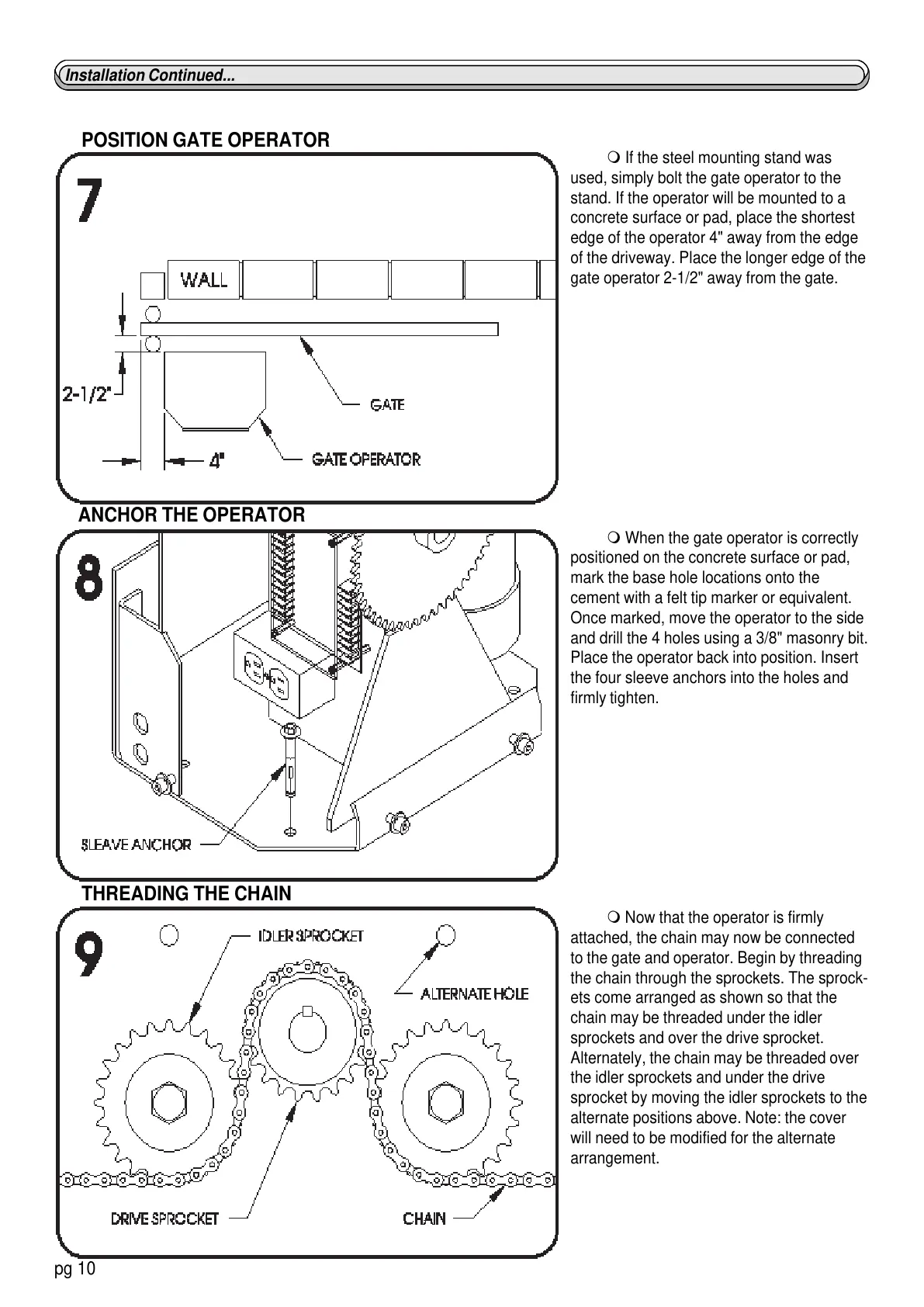

Installation Continued...
m If the steel mounting stand was
used, simply bolt the gate operator to the
stand. If the operator will be mounted to a
concrete surface or pad, place the shortest
edge of the operator 4" away from the edge
of the driveway. Place the longer edge of the
gate operator 2-1/2" away from the gate.
m When the gate operator is correctly
positioned on the concrete surface or pad,
mark the base hole locations onto the
cement with a felt tip marker or equivalent.
Once marked, move the operator to the side
and drill the 4 holes using a 3/8" masonry bit.
Place the operator back into position. Insert
the four sleeve anchors into the holes and
firmly tighten.
m Now that the operator is firmly
attached, the chain may now be connected
to the gate and operator. Begin by threading
the chain through the sprockets. The sprock-
ets come arranged as shown so that the
chain may be threaded under the idler
sprockets and over the drive sprocket.
Alternately, the chain may be threaded over
the idler sprockets and under the drive
sprocket by moving the idler sprockets to the
alternate positions above. Note: the cover
will need to be modified for the alternate
arrangement.
POSITION GATE OPERATOR
ANCHOR THE OPERATOR
THREADING THE CHAIN
