TR10K001-A RE / 04.2009
Operation8
Operating the door8.1

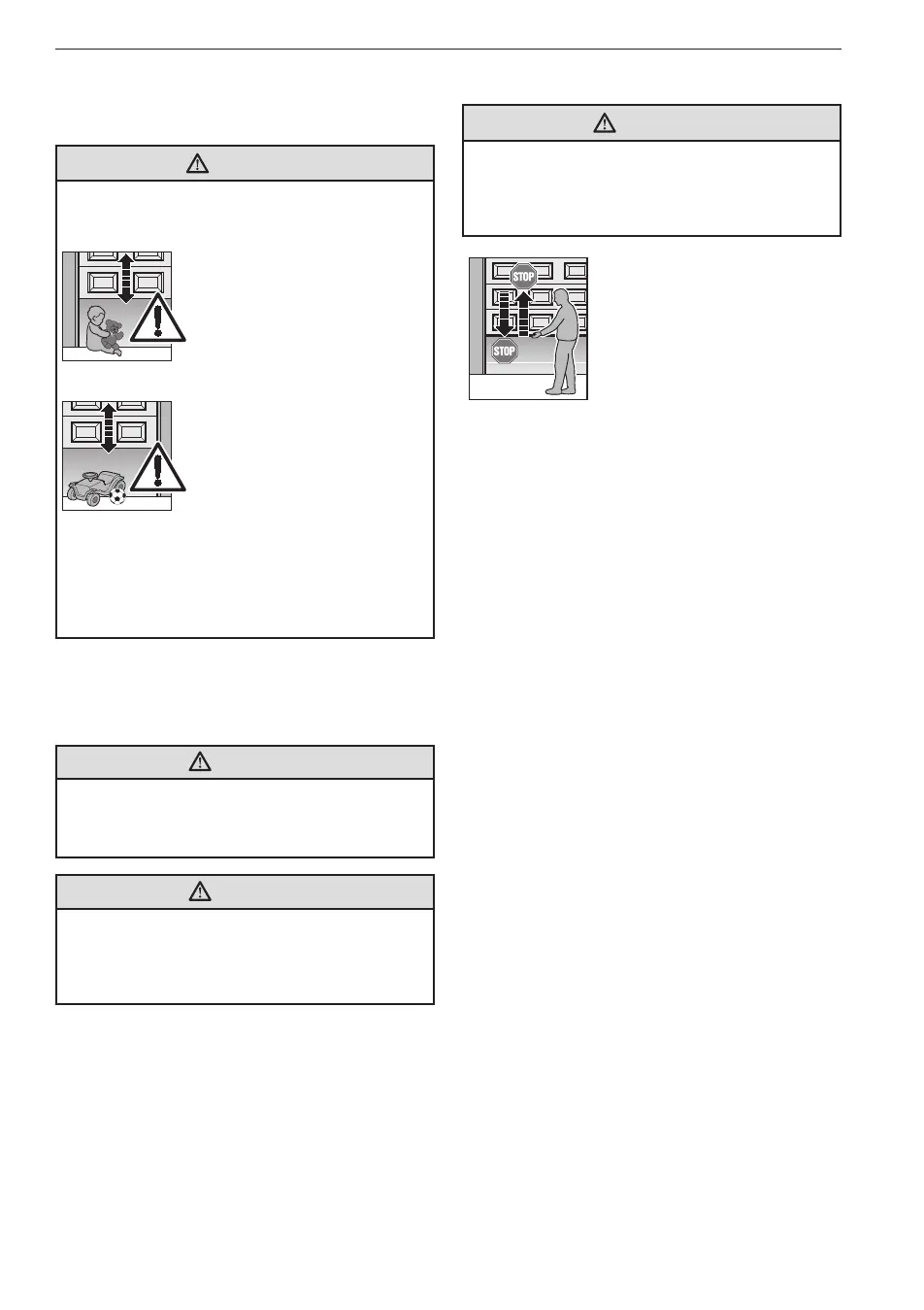

WARNING
Danger of injury during door travel
The sectional door opens to the top vertically; persons or
objects may be trapped.
Make sure that no persons or
objects are in the gate's travel
range.
Make sure that children are not
playing near the door system!
Always keep the opening area of
the door clear.
Only operate the garage door
operator if you can see the
door's area of travel.
Make sure that the cable of the
mechanical release on the slide
carriage cannot become caught
on a roof support system or
anything projecting from the
vehicle or door.
Always check that the door has
fully opened. Never drive or walk
through doorways unless the
door has reached the OPEN
end-of-travel position.
Do not operate the door in
strong winds.
NOTE:
As a general rule, conduct the initial function tests and
programming or extension of the remote control inside the
garage.
CAUTION
Cord knob
If you hang on the cord knob, you may fall and injure
yourself.
Do not hang on the cord knob with your body weight.
CAUTION
Danger of crushing!
Your fingers may be crushed if you reach into the boom
during door travel.
Do not reach into the boom with your fingers during
door travel.
Instructing users8.2
All persons using the gate system must be shown how to
operate it properly and safely.
Demonstrate and test the mechanical release as well as
the safety return.
Function tests8.3
WARNING
Quickly closing door
If the cord knob is actuated while the door is open, there is
a danger that door will close rapidly if the springs are weak,
broken or defective, or if the counterbalance is inadequate.
Only actuate the cord knob when the door is closed.
To check the safety reversal, stop
the door with both hands while it
is closing.
The door system should stop
and initiate a safety reversal. The
door system must also switch off
and stop the door while it is
opening.
In the event of a failure of the safety reversal, a specialist
must be commissioned immediately for the inspection
and repair work.
Normal operation8.4
In normal mode, the garage door operator works exclusively
according to the impulse sequence control. It does not matter
whether an external button, a hand transmitter button or the T
button has been actuated:
1st impulse: The door runs towards an end-of-travel
position.
2nd impulse: Door stops.
3rd impulse: Door runs in the opposite direction.
4th impulse: Door stops.
5th impulse: Door runs in the direction of the end-of-
travel position selected in the 1st impulse.
etc.
The operator light will light up during a door run and
automatically goes out after approx. 2 minutes.
Operating after a mechanical release8.5
If, for example, the mechanical release is actuated due to a
mains power failure, the slide carriage must be snapped back
into the carriage coupling to resume normal mode:
Move the carriage coupling close to the slide carriage.1.
Push down green coupling slider (see figure 2. 13).
Move door manually until the slide carriage snaps in.3.
Check whether the door completely reaches its closed 4.
position and opens completely by conducting multiple
uninterrupted door runs.
Now, the operator is ready for normal operation again. For
safety reasons, the door will always open upon the first
impulse command after a power failure during a door run.
NOTE:
If the behaviour does not correspond to that described in step
4, even after multiple uninterrupted door runs, a new learning
run is necessary. First the existing door data must be deleted
(see Chapter 11.1.1 and 4.1).
