2) VISOR
2.1) Visor mechanism
2.2) Visor Removal/Installation
The visor is made of polycarbonate and has connections that t into the housings on the move-
ment base. The teeth of the visor interact with the teeth on the movement base to offer stability
while the visor is open in the various positions.

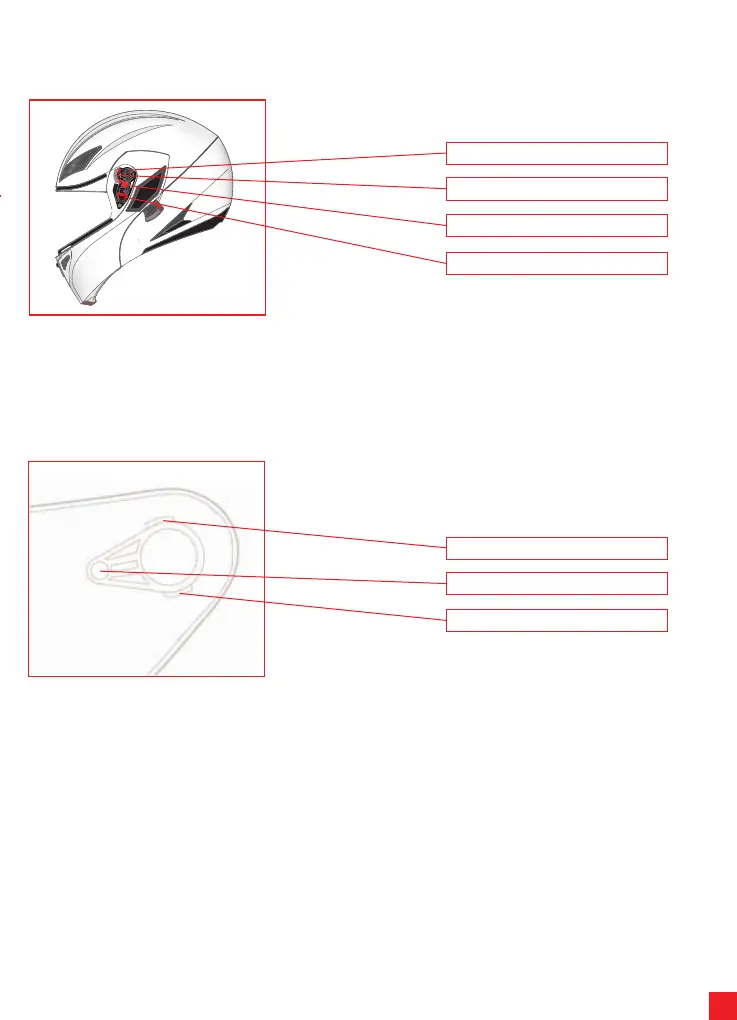

Upper connection housing
Movement base teeth
Visor stop device
Visor stop cursor
Upper connection
Visor tooth
Lower connection
We recommend that you carry out the following operations while resting the helmet on a
at surface.
