20

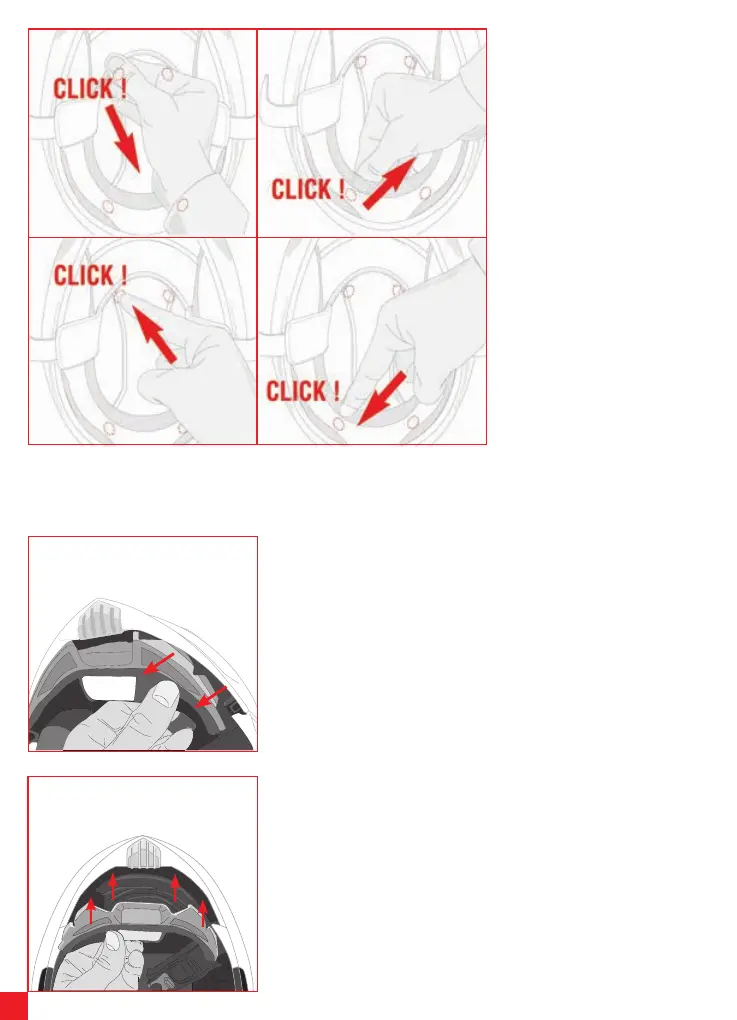

4.2) Crown pad removal/
installation
To remove the crown pad,
release the 2 press-studs at
the front (1) and the 2 at the
back of the helmet (2).
NB: Extract the crown pad
only after releasing all the
press studs to avoid dama-
ging them and prevent da-
mage to the fabric parts.
To ret the crown pad, in-
sert it inside the helmet and
fasten the 2 press-studs at
the back (3) and the 2 at the
front (4).
4.3) Wind shield removal/installation
To remove the shield, slide it out, pulling in the direction of
the arrow (1). To install the wind shield, insert the plastic
band into the special seats on the chin guard (2).
1 2
3 4
1
2
