4.1) Cheek pad removal/installation

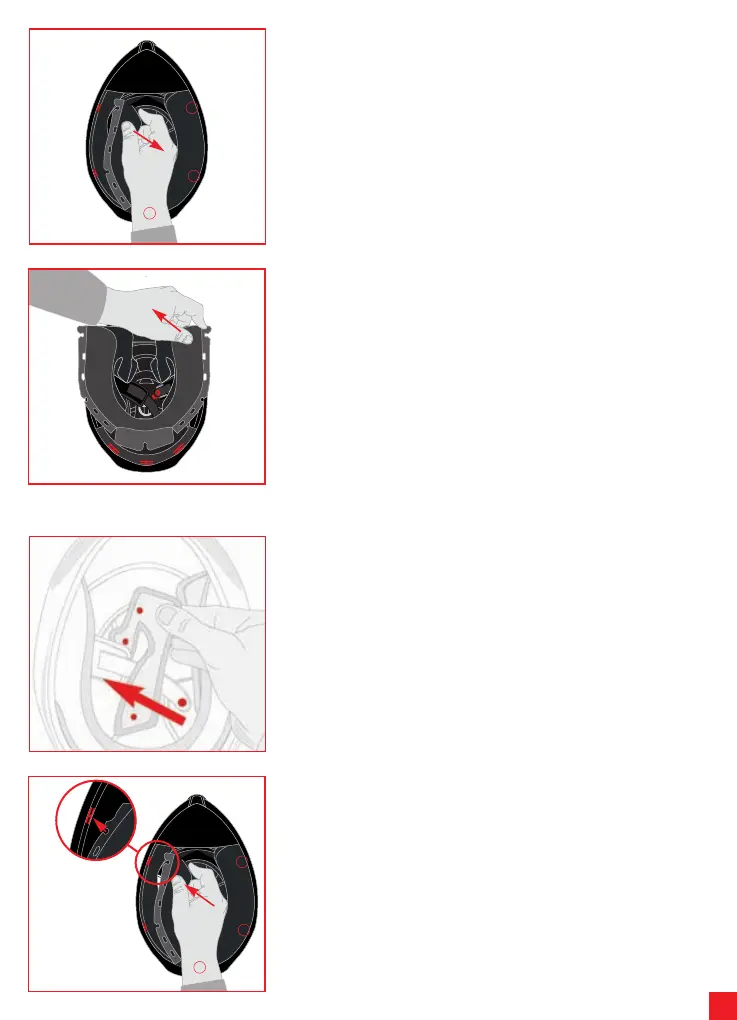

To remove the cheek pads, grip them at the front near the
helmet chin guard and pull in the direction of the arrow to
release them from all the press studs (1). Slide the plastic
band out of its housings and remove the cheek pads (2).
To reposition the cheek pads, slide them into the helmet,
inserting the strap into the special through hole and fasten
the press studs (3). Insert the plastic band into its housings
on the side of the outer shell (4). Check that the cheek pads
are perfectly secured to the helmet.
