AIC Auriga - Page 22

13

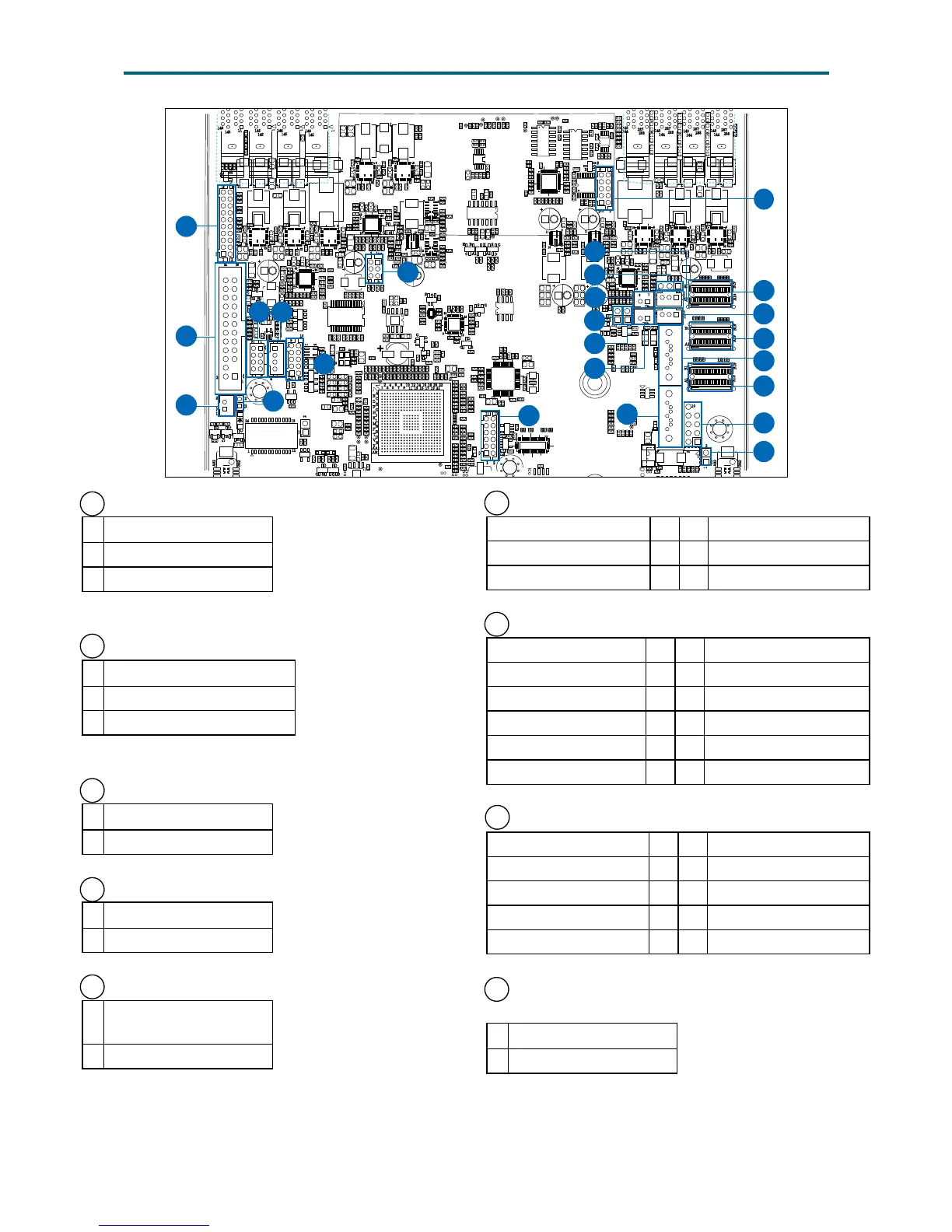

Chapter 3. Motherboard SettingsAuriga User Manual
11 a SATA-DOM Power Header (JSATA1_PWR2 )
1 GND
2 DOM_PWR1
3 +5V_S0_SATA1
Jumper default PIN-1 & PIN-2
11 b SATA-DOM Power Header (JSATA2_PWR2 )
1 GND
2 DOM_PWR2
3 +5V_S0_SATA2
Jumper default PIN-1 & PIN-2
12 a SATA-DOM Power Header (JSATA1_PWR1 )
1 +5V_S0_SATA1
2 GND
12 b SATA-DOM Power Header (JSATA2_PWR1 )
1 +5V_S0_SATA2
2 GND
16 BMC RESET Header (JBMC_RST1)
1 BMC_RESET
(BMC SRST#)
2 GND
Jumper default OPEN
17 GPIO Header (JBMC_GPIO1)
RACK_EXTRST_N 2 1 GND
BMC_GPY1 4 3 BMC_I2C_09_SDA
BMC_GPY0 6 5 BMC_I2C_09_SCL
18 Debug Port Header (JLPC1)
LPC_HDR_CLK 2 1 GND
P0_LFRAME_N 4 3 P0_LDRQ0_N
LPC_HDR_RST_N 6 5 P0_SERIRQ
P0_LAD3 8 7 P0_LAD2
+3V3_S0 10 9 P0_LAD1
P0_LAD0 12 11 GND
19 Front I/O USB Header (JUSB_INT1)
+5V_HUB2 1 2 +5V_HUB2
USB2_HUB1_DN 3 4 USB2_HUB2_DN
USB2_HUB1_DP 5 6 USB2_HUB2_DP
GND 7 8 GND
KEY (no pin) 9 10 GND
20 BMC FIRMWARE ROM CS# Disable Header
(JBMC_DIS1)
1 FW_SPI_CS0_N
2 GND
Default keep OPEN�
