WARNING
In the event of reverse polarity the unit could be totally destroyed and warranty voided!
3.3 AC Wiring
We recommend using 10 to 5Awg wire to connect to the ac terminal block.
When in AC mode the AC input power will supply both the loads and AC charger, a thicker wire gauge for
AC Input is required. Pls consult a qualified electrician about the specific wire gauge required in terms of
wire material and inverter power.
There are 3 different ways of connecting to the terminal block depending on the model. All the wirings are CE
compliant, call our tech support if you are not sure about how to wire any part of your inverter.

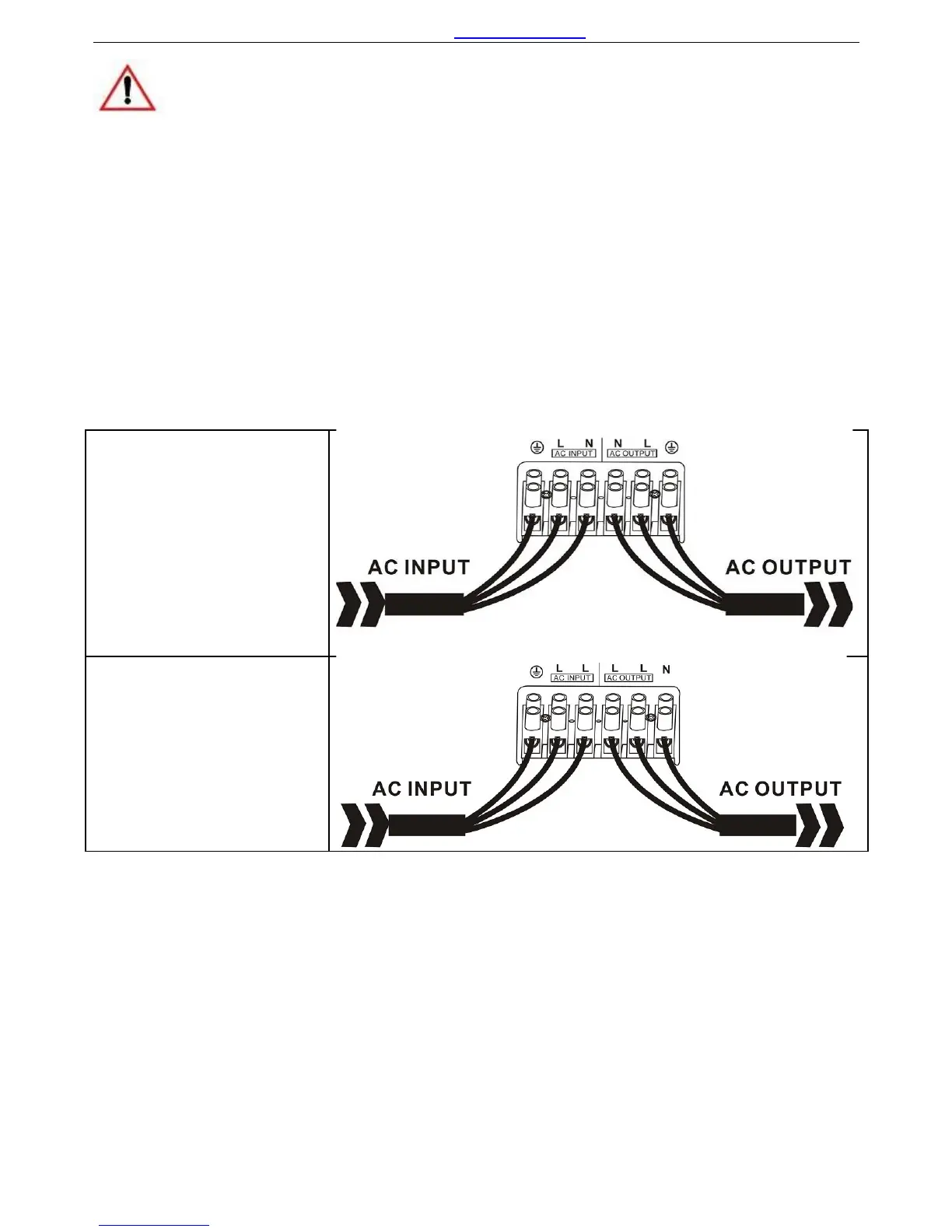

Wiring Option 1
230V single phase/120V single
phase
Input: Hot line+Neutral+Ground
Output: Hot line+Neutral+Ground
Wiring Option 2
230V split phase
Input: Hot line+ Hot line +Ground
Output: Hot line+ Hot line
+Neutral
